timertt::details::thread_impl_template< Engine > Class Template Reference

Template-based implementation of timer thread. More...

#include <all.hpp>

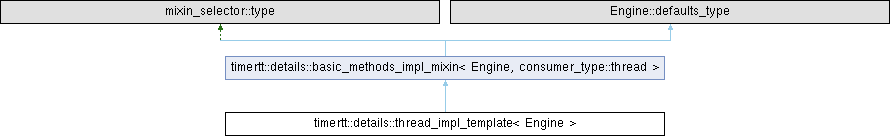

Inheritance diagram for timertt::details::thread_impl_template< Engine >:

Public Member Functions
template<typename... Args>
	thread_impl_template (Args &&... args)
	Constructor with all parameters.
	~thread_impl_template ()
	Destructor.
void	start ()
	Start timer thread.
void	shutdown ()
	Initiate shutdown for the timer thread without waiting for completion.
void	join ()
	Wait for completion of timer thread.
void	shutdown_and_join ()
	Initiate shutdown and wait for completion.
Public Member Functions inherited from timertt::details::basic_methods_impl_mixin< Engine, consumer_type::thread >
	basic_methods_impl_mixin (Args &&... args)
	Constructor with all parameters.
timer_holder	allocate ()
	Allocate of new timer object.
void	activate (timer_holder timer, Duration_1 pause, timer_action action)
	Activate timer and schedule it for execution.
void	activate (scoped_timer_object &timer, Duration_1 pause, timer_action action)
	Activate a scoped timer and schedule it for execution.
void	activate (Duration_1 pause, timer_action action)
	Activate timer and schedule it for execution.
void	activate (timer_holder timer, Duration_1 pause, Duration_2 period, timer_action action)
	Activate timer and schedule it for execution.
void	activate (scoped_timer_object &timer, Duration_1 pause, Duration_2 period, timer_action action)
	Activate a scoped timer and schedule it for execution.
void	activate (Duration_1 pause, Duration_2 period, timer_action action)
	Activate timer and schedule it for execution.
void	reschedule (timer_holder timer, Duration_1 pause, timer_action action)
	Perform an attempt to reschedule a timer.
void	reschedule (timer_holder timer, Duration_1 pause, Duration_2 period, timer_action action)
	Perform an attempt to reschedule a timer.
void	deactivate (timer_holder timer)
	Deactivate timer and remove it from the list.
void	deactivate (scoped_timer_object &timer)
	Deactivate timer and remove it from the list.
timer_quantities	get_timer_quantities ()
	Count of timers of various types.
bool	empty ()
	Check for emptiness.

Protected Member Functions
void	body ()
	Thread body.
void	sleep_for_next_event (typename base_type::lock_guard &lock)
	Waiting for next event to process.

Protected Attributes
Object's attributes.
bool	m_shutdown = false
	Shutdown flag.
Protected Attributes inherited from timertt::details::basic_methods_impl_mixin< Engine, consumer_type::thread >
Engine	m_engine
	Actual timer engine instance.

Private Types
using	base_type
	Shorthand for base type.

Additional Inherited Members
Public Types inherited from timertt::details::basic_methods_impl_mixin< Engine, consumer_type::thread >
using	thread_safety
	A typedef for thread safety type from Engine.
using	timer_action
	An alias for timer_action type.
using	scoped_timer_object
	An alias for scoped timer objects.
using	timer_holder
	Shorthand for timer objects' smart pointer.

Detailed Description

template<typename Engine>
class timertt::details::thread_impl_template< Engine >

Template-based implementation of timer thread.

Template Parameters

Engine

actual type of engine to be used.

Since

v.1.1.0

Definition at line 3513 of file 3rd_party/timertt/all.hpp.

Member Typedef Documentation

base_type

template<typename Engine >

using timertt::details::thread_impl_template< Engine >::base_type

private

Initial value:

 basic_methods_impl_mixin<
      Engine,
      consumer_type::thread >

Shorthand for base type.

Definition at line 3517 of file 3rd_party/timertt/all.hpp.

Constructor & Destructor Documentation

thread_impl_template()

template<typename Engine >

template<typename... Args>

timertt::details::thread_impl_template< Engine >::thread_impl_template ( Args &&... args )

inline

Constructor with all parameters.

Definition at line 3524 of file 3rd_party/timertt/all.hpp.

~thread_impl_template()

template<typename Engine >

timertt::details::thread_impl_template< Engine >::~thread_impl_template ( )

inline

Destructor.

Calls shutdown_and_join()

Definition at line 3534 of file 3rd_party/timertt/all.hpp.

Member Function Documentation

body()

template<typename Engine >

void timertt::details::thread_impl_template< Engine >::body ( )

inlineprotected

Thread body.

Definition at line 3612 of file 3rd_party/timertt/all.hpp.

join()

template<typename Engine >

void timertt::details::thread_impl_template< Engine >::join ( )

inline

Wait for completion of timer thread.

Method shutdown() must be called somewhere else.

Definition at line 3575 of file 3rd_party/timertt/all.hpp.

shutdown()

template<typename Engine >

void timertt::details::thread_impl_template< Engine >::shutdown ( )

inline

Initiate shutdown for the timer thread without waiting for completion.

Definition at line 3559 of file 3rd_party/timertt/all.hpp.

shutdown_and_join()

template<typename Engine >

void timertt::details::thread_impl_template< Engine >::shutdown_and_join ( )

inline

Initiate shutdown and wait for completion.

Definition at line 3593 of file 3rd_party/timertt/all.hpp.

sleep_for_next_event()

template<typename Engine >

void timertt::details::thread_impl_template< Engine >::sleep_for_next_event ( typename base_type::lock_guard & lock )

inlineprotected

Waiting for next event to process.

If the list is not emply the thread will sleep until time point of the first timer in the list.

Parameters

lock	Object's lock. The lock is necessary for waiting on condition variable.

Definition at line 3633 of file 3rd_party/timertt/all.hpp.

start()

template<typename Engine >

void timertt::details::thread_impl_template< Engine >::start ( )

inline

Start timer thread.

Exceptions

std::runtime_error

if thread is already started.

Definition at line 3544 of file 3rd_party/timertt/all.hpp.

Member Data Documentation

m_shutdown

template<typename Engine >

bool timertt::details::thread_impl_template< Engine >::m_shutdown = false

protected

Shutdown flag.

Definition at line 3605 of file 3rd_party/timertt/all.hpp.

---

The documentation for this class was generated from the following file:

• 3rd_party/timertt/all.hpp
