A template with implementation of local mbox. More...

#include <local_mbox.hpp>

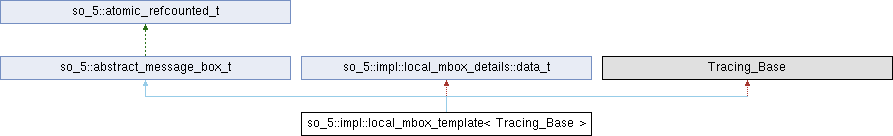

Inheritance diagram for so_5::impl::local_mbox_template< Tracing_Base >:

Public Member Functions
template<typename... Tracing_Args>
	local_mbox_template (mbox_id_t id, environment_t &env, Tracing_Args &&... args)

mbox_id_t	id () const override
	Unique ID of this mbox.

void	subscribe_event_handler (const std::type_index &type_wrapper, abstract_message_sink_t &subscriber) override
	Add the message handler.

void	unsubscribe_event_handler (const std::type_index &type_wrapper, abstract_message_sink_t &subscriber) noexcept override
	Remove all message handlers.

std::string	query_name () const override
	Get the mbox name.

mbox_type_t	type () const override
	Get the type of message box.

void	do_deliver_message (message_delivery_mode_t delivery_mode, const std::type_index &msg_type, const message_ref_t &message, unsigned int redirection_deep) override
	Deliver message for all subscribers with respect to message limits.

void	set_delivery_filter (const std::type_index &msg_type, const delivery_filter_t &filter, abstract_message_sink_t &subscriber) override
	Set a delivery filter for message type and subscriber.

void	drop_delivery_filter (const std::type_index &msg_type, abstract_message_sink_t &subscriber) noexcept override
	Removes delivery filter for message type and subscriber.

environment_t &	environment () const noexcept override
	SObjectizer Environment for which the mbox is created.

Public Member Functions inherited from so_5::abstract_message_box_t
	abstract_message_box_t ()=default

virtual	~abstract_message_box_t () noexcept=default

Private Member Functions
template<typename Info_Maker , typename Info_Changer >
void	insert_or_modify_subscriber (const std::type_index &type_wrapper, abstract_message_sink_t &subscriber, Info_Maker maker, Info_Changer changer)

template<typename Info_Changer >
void	modify_and_remove_subscriber_if_needed (const std::type_index &type_wrapper, abstract_message_sink_t &subscriber, Info_Changer changer)

void	do_deliver_message_impl (typename Tracing_Base::deliver_op_tracer const &tracer, message_delivery_mode_t delivery_mode, const std::type_index &msg_type, const message_ref_t &message, unsigned int redirection_deep)

void	do_deliver_message_to_subscriber (const local_mbox_details::subscription_info_with_sink_t &subscriber_info, typename Tracing_Base::deliver_op_tracer const &tracer, message_delivery_mode_t delivery_mode, const std::type_index &msg_type, const message_ref_t &message, unsigned int redirection_deep) const

void	ensure_immutable_message (const std::type_index &msg_type, const message_ref_t &what) const
	Ensures that message is an immutable message.

Private Member Functions inherited from so_5::impl::local_mbox_details::data_t
	data_t (mbox_id_t id, environment_t &env)

Additional Inherited Members
Protected Member Functions inherited from so_5::atomic_refcounted_t
	atomic_refcounted_t (const atomic_refcounted_t &)=delete

atomic_refcounted_t &	operator= (const atomic_refcounted_t &)=delete

	atomic_refcounted_t () noexcept
	Default constructor.

	~atomic_refcounted_t () noexcept=default
	Destructor.

void	inc_ref_count () noexcept
	Increments reference count.

unsigned long	dec_ref_count () noexcept
	Decrement reference count.

Private Types inherited from so_5::impl::local_mbox_details::data_t
using	messages_table_t
	Map from message type to subscribers.

Private Attributes inherited from so_5::impl::local_mbox_details::data_t
const mbox_id_t	m_id
	ID of this mbox.

environment_t &	m_env
	Environment for which the mbox is created.

default_rw_spinlock_t	m_lock
	Object lock.

messages_table_t	m_subscribers
	Map of subscribers to messages.

Detailed Description

template<typename Tracing_Base>
class so_5::impl::local_mbox_template< Tracing_Base >

A template with implementation of local mbox.

Since: v.5.5.9

Template Parameters

Tracing_Base base class with implementation of message delivery tracing methods.

Definition at line 643 of file local_mbox.hpp.

Constructor & Destructor Documentation

◆ local_mbox_template()

template<typename Tracing_Base >

template<typename... Tracing_Args>

so_5::impl::local_mbox_template< Tracing_Base >::local_mbox_template	(	mbox_id_t	id,
		environment_t &	env,
		Tracing_Args &&...	args )

inline

Parameters

id	ID of this mbox.
env	Environment for which the mbox is created.
args	Optional parameters for Tracing_Base's constructor.

Definition at line 650 of file local_mbox.hpp.

Member Function Documentation

◆ do_deliver_message()

template<typename Tracing_Base >

void so_5::impl::local_mbox_template< Tracing_Base >::do_deliver_message	(	message_delivery_mode_t	delivery_mode,
		const std::type_index &	msg_type,
		const message_ref_t &	message,
		unsigned int	redirection_deep )

inlineoverridevirtual

Deliver message for all subscribers with respect to message limits.

Since: v.5.5.4

A message delivery from timer thread is somewhat different from an ordinary message delivery. Especially in the case when target mbox is a message chain. If that message chain is full and some kind of overflow reaction is specified (like waiting for some time or throwing an exception) then it can lead to undesired behaviour of the whole application. To take care about these cases a new method is introduced.

Note: Since v.5.6.0 this method is used for deliverance of ordinary messages/signals and for deliverance of enveloped messages.

Parameters

delivery_mode	Can the delivery blocks the current thread?
msg_type	Type of the message to deliver.
message	A message instance to be delivered.
redirection_deep	Current deep of overlimit reaction recursion.

Implements so_5::abstract_message_box_t.

Definition at line 714 of file local_mbox.hpp.

◆ do_deliver_message_impl()

template<typename Tracing_Base >

void so_5::impl::local_mbox_template< Tracing_Base >::do_deliver_message_impl	(	typename Tracing_Base::deliver_op_tracer const &	tracer,
		message_delivery_mode_t	delivery_mode,
		const std::type_index &	msg_type,
		const message_ref_t &	message,
		unsigned int	redirection_deep )

inlineprivate

Definition at line 847 of file local_mbox.hpp.

◆ do_deliver_message_to_subscriber()

template<typename Tracing_Base >

void so_5::impl::local_mbox_template< Tracing_Base >::do_deliver_message_to_subscriber	(	const local_mbox_details::subscription_info_with_sink_t &	subscriber_info,
		typename Tracing_Base::deliver_op_tracer const &	tracer,
		message_delivery_mode_t	delivery_mode,
		const std::type_index &	msg_type,
		const message_ref_t &	message,
		unsigned int	redirection_deep ) const

inlineprivate

Definition at line 873 of file local_mbox.hpp.

◆ drop_delivery_filter()

template<typename Tracing_Base >

void so_5::impl::local_mbox_template< Tracing_Base >::drop_delivery_filter	(	const std::type_index &	msg_type,
		abstract_message_sink_t &	subscriber )

inlineoverridevirtualnoexcept

Removes delivery filter for message type and subscriber.

Since: v.5.5.5

Implements so_5::abstract_message_box_t.

Definition at line 759 of file local_mbox.hpp.

◆ ensure_immutable_message()

template<typename Tracing_Base >

void so_5::impl::local_mbox_template< Tracing_Base >::ensure_immutable_message	(	const std::type_index &	msg_type,
		const message_ref_t &	what ) const

inlineprivate

Ensures that message is an immutable message.

Checks mutability flag and throws an exception if message is a mutable one.

Since: v.5.5.19

Definition at line 913 of file local_mbox.hpp.

◆ environment()

template<typename Tracing_Base >

environment_t & so_5::impl::local_mbox_template< Tracing_Base >::environment ( ) const

inlineoverridevirtualnoexcept

SObjectizer Environment for which the mbox is created.

Since: v.5.6.0

Implements so_5::abstract_message_box_t.

Definition at line 772 of file local_mbox.hpp.

◆ id()

template<typename Tracing_Base >

mbox_id_t so_5::impl::local_mbox_template< Tracing_Base >::id ( ) const

inlineoverridevirtual

Unique ID of this mbox.

Since: v.5.4.0

Implements so_5::abstract_message_box_t.

Definition at line 662 of file local_mbox.hpp.

◆ insert_or_modify_subscriber()

template<typename Tracing_Base >

template<typename Info_Maker , typename Info_Changer >

void so_5::impl::local_mbox_template< Tracing_Base >::insert_or_modify_subscriber	(	const std::type_index &	type_wrapper,
		abstract_message_sink_t &	subscriber,
		Info_Maker	maker,
		Info_Changer	changer )

inlineprivate

Definition at line 780 of file local_mbox.hpp.

◆ modify_and_remove_subscriber_if_needed()

template<typename Tracing_Base >

template<typename Info_Changer >

void so_5::impl::local_mbox_template< Tracing_Base >::modify_and_remove_subscriber_if_needed	(	const std::type_index &	type_wrapper,
		abstract_message_sink_t &	subscriber,
		Info_Changer	changer )

inlineprivate

Definition at line 817 of file local_mbox.hpp.

◆ query_name()

template<typename Tracing_Base >

std::string so_5::impl::local_mbox_template< Tracing_Base >::query_name ( ) const

inlineoverridevirtual

Get the mbox name.

Implements so_5::abstract_message_box_t.

Definition at line 699 of file local_mbox.hpp.

◆ set_delivery_filter()

template<typename Tracing_Base >

void so_5::impl::local_mbox_template< Tracing_Base >::set_delivery_filter	(	const std::type_index &	msg_type,
		const delivery_filter_t &	filter,
		abstract_message_sink_t &	subscriber )

inlineoverridevirtual

Set a delivery filter for message type and subscriber.

Since: v.5.5.5

Note: If there already is a delivery filter for that (msg_type,subscriber) pair then old delivery filter will be replaced by new one.

Parameters

msg_type	Message type to be filtered.
filter	Filter to be set. A caller must guaranted the validity of this reference.
subscriber	A subscriber for the message.

Implements so_5::abstract_message_box_t.

Definition at line 740 of file local_mbox.hpp.

◆ subscribe_event_handler()

template<typename Tracing_Base >

void so_5::impl::local_mbox_template< Tracing_Base >::subscribe_event_handler	(	const std::type_index &	type_index,
		abstract_message_sink_t &	subscriber )

inlineoverridevirtual

Add the message handler.

Parameters

type_index	Message type.
subscriber	Subscriber.

Implements so_5::abstract_message_box_t.

Definition at line 668 of file local_mbox.hpp.

◆ type()

template<typename Tracing_Base >

mbox_type_t so_5::impl::local_mbox_template< Tracing_Base >::type ( ) const

inlineoverridevirtual

Get the type of message box.

Since: v.5.5.3

Note: This method is primarily intended for internal usage. It is useful sometimes in subscription-related operations because there is no need to do some actions for MPSC mboxes.

Implements so_5::abstract_message_box_t.

Definition at line 708 of file local_mbox.hpp.

◆ unsubscribe_event_handler()

template<typename Tracing_Base >

void so_5::impl::local_mbox_template< Tracing_Base >::unsubscribe_event_handler	(	const std::type_index &	type_index,
		abstract_message_sink_t &	subscriber )

inlineoverridevirtualnoexcept

Remove all message handlers.

Parameters

type_index	Message type.
subscriber	Subscriber.

Implements so_5::abstract_message_box_t.

Definition at line 686 of file local_mbox.hpp.

The documentation for this class was generated from the following file:

local_mbox.hpp
