so_5::abstract_message_chain_t Class Reference

An interface of message chain. More...

#include <mchain.hpp>

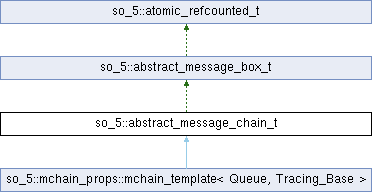

Inheritance diagram for so_5::abstract_message_chain_t:

Public Member Functions
virtual mchain_props::extraction_status_t	extract (mchain_props::demand_t &dest, mchain_props::duration_t empty_queue_timeout)=0
so_5::mbox_t	as_mbox ()
	Cast message chain to message box.
virtual bool	empty () const =0
	Is message chain empty?
virtual std::size_t	size () const =0
	Count of messages in the chain.
template<typename Exceptions_Control >
void	close (Exceptions_Control, mchain_props::close_mode_t mode) noexcept(noexcept(details::should_terminate_if_throws_t< Exceptions_Control >::value))
	Close the chain.
virtual mbox_id_t	id () const=0
	Unique ID of this mbox.
virtual so_5::environment_t &	environment () const noexcept=0
	SObjectizer Environment for which the mbox is created.

Protected Member Functions
	abstract_message_chain_t ()=default
	~abstract_message_chain_t () noexcept override=default
virtual mchain_props::extraction_status_t	extract (mchain_props::demand_t &dest, mchain_props::select_case_t &select_case)=0
	An extraction attempt as a part of multi chain select.
virtual mchain_props::push_status_t	push (const std::type_index &msg_type, const message_ref_t &message, mchain_props::select_case_t &select_case)=0
	An attempt to push a new message into the mchain.
virtual void	remove_from_select (mchain_props::select_case_t &select_case) noexcept=0
	Removement of mchain from multi chain select.
virtual void	actual_close (mchain_props::close_mode_t mode)=0
	Close the chain.
Protected Member Functions inherited from so_5::abstract_message_box_t
	abstract_message_box_t ()=default
virtual	~abstract_message_box_t () noexcept=default
virtual void	subscribe_event_handler (const std::type_index &type_index, abstract_message_sink_t &subscriber)=0
	Add the message handler.
virtual void	unsubscribe_event_handler (const std::type_index &type_index, abstract_message_sink_t &subscriber) noexcept=0
	Remove all message handlers.
virtual std::string	query_name () const =0
	Get the mbox name.
virtual mbox_type_t	type () const =0
	Get the type of message box.
virtual void	do_deliver_message (message_delivery_mode_t delivery_mode, const std::type_index &msg_type, const message_ref_t &message, unsigned int redirection_deep)=0
	Deliver message for all subscribers with respect to message limits.
virtual void	set_delivery_filter (const std::type_index &msg_type, const delivery_filter_t &filter, abstract_message_sink_t &subscriber)=0
	Set a delivery filter for message type and subscriber.
virtual void	drop_delivery_filter (const std::type_index &msg_type, abstract_message_sink_t &subscriber) noexcept=0
	Removes delivery filter for message type and subscriber.
Protected Member Functions inherited from so_5::atomic_refcounted_t
	atomic_refcounted_t (const atomic_refcounted_t &)=delete
atomic_refcounted_t &	operator= (const atomic_refcounted_t &)=delete
	atomic_refcounted_t () noexcept
	Default constructor.
	~atomic_refcounted_t () noexcept=default
	Destructor.
void	inc_ref_count () noexcept
	Increments reference count.
unsigned long	dec_ref_count () noexcept
	Decrement reference count.

Private Member Functions
	abstract_message_chain_t (const abstract_message_chain_t &)=delete
abstract_message_chain_t &	operator= (const abstract_message_chain_t &)=delete

Friends
class	intrusive_ptr_t< abstract_message_chain_t >
class	mchain_props::select_case_t

Detailed Description

An interface of message chain.

Since

v.5.5.13

Definition at line 458 of file mchain.hpp.

Constructor & Destructor Documentation

abstract_message_chain_t() [1/2]

so_5::abstract_message_chain_t::abstract_message_chain_t ( const abstract_message_chain_t & )

privatedelete

abstract_message_chain_t() [2/2]

so_5::abstract_message_chain_t::abstract_message_chain_t ( )

protecteddefault

~abstract_message_chain_t()

so_5::abstract_message_chain_t::~abstract_message_chain_t ( )

overrideprotecteddefaultnoexcept

Member Function Documentation

actual_close()

virtual void so_5::abstract_message_chain_t::actual_close ( mchain_props::close_mode_t mode )

protectedpure virtual

Close the chain.

Attention

This method can throw exception.

Since

v.5.7.3

Parameters

mode	What to do with chain's content.

Implemented in so_5::mchain_props::mchain_template< Queue, Tracing_Base >.

as_mbox()

mbox_t so_5::abstract_message_chain_t::as_mbox ( )

nodiscard

Cast message chain to message box.

Definition at line 20 of file mchain.cpp.

close()

template<typename Exceptions_Control >

void so_5::abstract_message_chain_t::close ( Exceptions_Control , mchain_props::close_mode_t mode )

inlinenoexcept

Close the chain.

Since v.5.7.3 this is the recommended way of closing a mchain. This method allows to specify how exceptions have to be treated:

auto ch1 = so_5::create_mchain(env);
auto ch2 = so_5::create_mchain(env);
...
// Enable exceptions during 'close' operation.
ch1->close(
    so_5::exceptions_enabled,
    so_5::mchain_props::close_mode_t::drop_content );

// Terminate the application if 'close' operation throws.
ch2->close(
    so_5::terminate_if_throws,
    so_5::mchain_props::close_mode_t::drop_content );

This method was introduced because 'close' operation can throw but it's not obvious enough. Because 'close' can throw additional care has to be taken when 'close' is initiated in noexcept-contexts (like destructor and, often, in catch-blocks). This new method allows expressing intentions more clearly. For example:

class some_class {
  so_5::mchain_t ch_;
  ...
public:
  some_class(so_5::environment_t & env)
    : ch_{so_5::create_mchain(env)}
  {}
  ~some_class() noexcept
  {
    // There is no sense to allow exceptions during close operation.
    ch_->close(
        so_5::terminate_if_throws,
        so_5::mchain_props::close_mode_t::drop_content );
  }
  ...
};
...
void some_function(so_5::environment_t & env)
{
  auto ch = so_5::create_mchain(env);
  ...
  // Have to close ch.
  // This is not noexcept-context, so we can allow exceptions.
  ch_->close(
      so_5::exceptions_enabled,
      so_5::mchain_props::close_mode_t::retain_content );
  ...
}

Since

v.5.7.3

Parameters

mode	What to do with chain's content.

Definition at line 557 of file mchain.hpp.

empty()

virtual bool so_5::abstract_message_chain_t::empty ( ) const

nodiscardpure virtual

Is message chain empty?

Implemented in so_5::mchain_props::mchain_template< Queue, Tracing_Base >.

Examples

so_5/producer_consumer_mchain/main.cpp.

environment()

virtual so_5::environment_t & so_5::abstract_message_box_t::environment ( ) const

nodiscardvirtualnoexcept

SObjectizer Environment for which the mbox is created.

Since

v.5.6.0

Implements so_5::abstract_message_box_t.

Reimplemented in so_5::mchain_props::mchain_template< Queue, Tracing_Base >.

extract() [1/2]

virtual mchain_props::extraction_status_t so_5::abstract_message_chain_t::extract ( mchain_props::demand_t & dest, mchain_props::duration_t empty_queue_timeout )

nodiscardpure virtual

Parameters

dest	Destination for extracted messages.
empty_queue_timeout	Max time to wait on empty queue.

Implemented in so_5::mchain_props::mchain_template< Queue, Tracing_Base >.

extract() [2/2]

virtual mchain_props::extraction_status_t so_5::abstract_message_chain_t::extract ( mchain_props::demand_t & dest, mchain_props::select_case_t & select_case )

nodiscardprotectedpure virtual

An extraction attempt as a part of multi chain select.

Attention

This method is a pure virtual since v.5.6.2.

Note

This method is intended to be used by select_case_t.

Since

v.5.5.16

Parameters

dest	Destination for extracted messages.
select_case	Select case to be stored for notification if mchain is empty.

Implemented in so_5::mchain_props::mchain_template< Queue, Tracing_Base >.

id()

virtual mbox_id_t so_5::abstract_message_box_t::id ( ) const

nodiscardvirtual

Unique ID of this mbox.

Since

v.5.4.0

Implements so_5::abstract_message_box_t.

Reimplemented in so_5::mchain_props::mchain_template< Queue, Tracing_Base >.

operator=()

abstract_message_chain_t & so_5::abstract_message_chain_t::operator= ( const abstract_message_chain_t & )

privatedelete

push()

virtual mchain_props::push_status_t so_5::abstract_message_chain_t::push ( const std::type_index & msg_type, const message_ref_t & message, mchain_props::select_case_t & select_case )

nodiscardprotectedpure virtual

An attempt to push a new message into the mchain.

Unlike do_deliver_message() method the push() doesn't apply the overload reaction if the mchain if full. The select_case is stored to select_cases list instead.

Note

This method is intended to be used by select_case_t.

Since

v.5.7.0

Parameters

msg_type	Type of message/signal to be pushed.
message	Message/signal to be pushed.
select_case	Select case to be stored for notification if mchain is full.

Implemented in so_5::mchain_props::mchain_template< Queue, Tracing_Base >.

remove_from_select()

virtual void so_5::abstract_message_chain_t::remove_from_select ( mchain_props::select_case_t & select_case )

protectedpure virtualnoexcept

Removement of mchain from multi chain select.

Attention

This method is a pure virtual and noexcept since v.5.6.2.

Note

This method is intended to be used by select_case_t.

Since

v.5.5.16

Parameters

select_case

Select case to be removed from notification queue.

Implemented in so_5::mchain_props::mchain_template< Queue, Tracing_Base >.

size()

virtual std::size_t so_5::abstract_message_chain_t::size ( ) const

nodiscardpure virtual

Count of messages in the chain.

Implemented in so_5::mchain_props::mchain_template< Queue, Tracing_Base >.

Friends And Related Symbol Documentation

intrusive_ptr_t< abstract_message_chain_t >

friend class intrusive_ptr_t< abstract_message_chain_t >

friend

Definition at line 356 of file mchain.hpp.

mchain_props::select_case_t

friend class mchain_props::select_case_t

friend

Definition at line 461 of file mchain.hpp.

---

The documentation for this class was generated from the following files:

• mchain.hpp
• mchain.cpp
