so_5::enveloped_msg::envelope_t Class Reference

An interface of envelope with some message/signal inside. More...

#include <enveloped_msg.hpp>

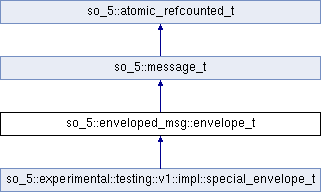

Inheritance diagram for so_5::enveloped_msg::envelope_t:

Public Types
using	payload_info_t = ::so_5::enveloped_msg::payload_info_t
using	handler_invoker_t = ::so_5::enveloped_msg::handler_invoker_t
using	access_context_t = ::so_5::enveloped_msg::access_context_t
Public Types inherited from so_5::message_t
using	kind_t = ::so_5::message_kind_t
	A short typedef for kind of message. More...

Public Member Functions
	envelope_t ()=default
	envelope_t (const envelope_t &)=default
envelope_t &	operator= (const envelope_t &)=default
	envelope_t (envelope_t &&)=default
envelope_t &	operator= (envelope_t &&)=default
virtual	~envelope_t () override=default
virtual void	access_hook (access_context_t context, handler_invoker_t &invoker) noexcept=0
Public Member Functions inherited from so_5::message_t
	message_t ()
	message_t (const message_t &other)
	message_t (message_t &&other)
message_t &	operator= (const message_t &other)
message_t &	operator= (message_t &&other)
virtual	~message_t () noexcept=default
Public Member Functions inherited from so_5::atomic_refcounted_t
	atomic_refcounted_t (const atomic_refcounted_t &)=delete
atomic_refcounted_t &	operator= (const atomic_refcounted_t &)=delete
	atomic_refcounted_t () noexcept
	Default constructor. More...
	~atomic_refcounted_t () noexcept=default
	Destructor. More...
void	inc_ref_count () noexcept
	Increments reference count. More...
unsigned long	dec_ref_count () noexcept
	Decrement reference count. More...

Private Member Functions
kind_t	so5_message_kind () const noexcept override
	Detect the kind of the message. More...

Detailed Description

An interface of envelope with some message/signal inside.

SObjectizer v.5.5.23 introduced a new thing: enveloped messages. It means that actual message/signal is placed into a special container called 'envelope'. This envelope is delivered to all receivers of the original message/signal. But before the calling of event handler in a receiver the original message/signal (e.g. payload) are extracted from envelope and passed to the event handler.

This interface describes 'envelope' for such containers. All envelopes should implement this interface.

Method access_hook() is called by SObjectizer when the payload of enveloped message should be accessed. For example:

• envelope is delivered to a receiver and receiver is ready to handle a message from envelope;
• envelope can't be delivered to a receiver in its current form and there is a need to transform the message/signal from the envelope to another type of message/signal. For example it can happen when limit_then_transform is used for overload control. In that case the payload should be extracted and passed to a transformation function;
• envelope should be analyzed by a delivery filter for further delivery of message.

When access_hook() is called the envelope should check the availability of the payload and, if the payload is available for processing, should pass the payload info to handler_invoker_t::invoke() method.

Please note that call of handler_invoker_t::invoke() is not guaranteed. Envelope can check some conditions (like payload expiration or revocation) and does call to invoke() only if these conditions are meet. But if some conditions are not fulfilled then access_hook() won't call handler_invoker_t::invoke() method.

Since

v.5.5.23

Member Typedef Documentation

access_context_t

using so_5::enveloped_msg::envelope_t::access_context_t = ::so_5::enveloped_msg::access_context_t

handler_invoker_t

using so_5::enveloped_msg::envelope_t::handler_invoker_t = ::so_5::enveloped_msg::handler_invoker_t

payload_info_t

using so_5::enveloped_msg::envelope_t::payload_info_t = ::so_5::enveloped_msg::payload_info_t

Constructor & Destructor Documentation

envelope_t() [1/3]

so_5::enveloped_msg::envelope_t::envelope_t ( )

default

envelope_t() [2/3]

so_5::enveloped_msg::envelope_t::envelope_t ( const envelope_t &  )

default

envelope_t() [3/3]

so_5::enveloped_msg::envelope_t::envelope_t ( envelope_t &&  )

default

~envelope_t()

virtual so_5::enveloped_msg::envelope_t::~envelope_t ( )

overridevirtualdefault

Member Function Documentation

access_hook()

virtual void so_5::enveloped_msg::envelope_t::access_hook ( access_context_t  context, handler_invoker_t &  invoker  )

pure virtualnoexcept

Parameters

context	Why this hook is called.
invoker	Proxy object which can call an actual event handler.

Implemented in so_5::experimental::testing::v1::impl::special_envelope_t.

operator=() [1/2]

envelope_t& so_5::enveloped_msg::envelope_t::operator= ( const envelope_t &  )

default

operator=() [2/2]

envelope_t& so_5::enveloped_msg::envelope_t::operator= ( envelope_t &&  )

default

so5_message_kind()

kind_t so_5::enveloped_msg::envelope_t::so5_message_kind ( ) const

inlineoverrideprivatevirtualnoexcept

Detect the kind of the message.

Note

This method is intended to be used by SObjectizer and low-level SObjectizer extension. Because of that it is not guaranteed that this method is part of stable SObjectizer API. It can be changed or even removed in any future versions of SObjectizer.

Since

v.5.5.23

Reimplemented from so_5::message_t.

---

The documentation for this class was generated from the following file:

• enveloped_msg.hpp
