A timer wheel manager template. More...
#include <all.hpp>

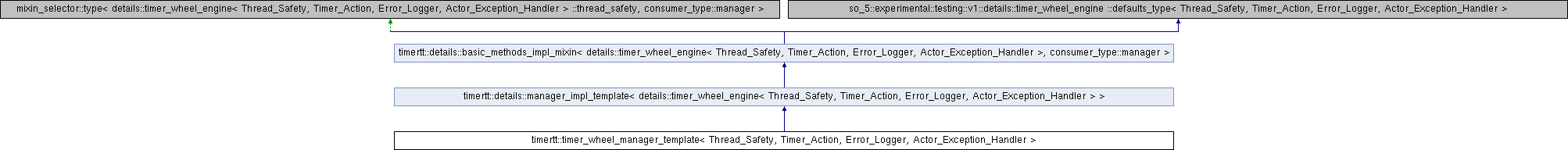

Inheritance diagram for timertt::timer_wheel_manager_template< Thread_Safety, Timer_Action, Error_Logger, Actor_Exception_Handler >:
Public Member Functions | |
| timer_wheel_manager_template () | |
| Default constructor. More... | |
| timer_wheel_manager_template (unsigned int wheel_size, monotonic_clock::duration granularity) | |
| Constructor with wheel size and granularity parameters. More... | |
| timer_wheel_manager_template (unsigned int wheel_size, monotonic_clock::duration granularity, Error_Logger error_logger, Actor_Exception_Handler exception_handler) | |
| Constructor with all parameters. More... | |
 Public Member Functions inherited from timertt::details::manager_impl_template< details::timer_wheel_engine< Thread_Safety, Timer_Action, Error_Logger, Actor_Exception_Handler > > | |
| manager_impl_template (Args &&... args) | |
| Constructor with all parameters. More... | |
| void | reset () |
| Reset all timers and return manager to the initial state. More... | |
| void | process_expired_timers () |
| Perform processing of expired timers. More... | |
| std::tuple< bool, monotonic_clock::time_point > | nearest_time_point () |
| Get the time for next process_expired_timers invocation. More... | |
| monotonic_clock::duration | timeout_before_nearest_timer (Duration default_timeout) |
| Get the sleeping time before the earlist timer expiration. More... | |
| Public Member Functions inherited from timertt::details::basic_methods_impl_mixin< details::timer_wheel_engine< Thread_Safety, Timer_Action, Error_Logger, Actor_Exception_Handler >, consumer_type::manager > | |
| basic_methods_impl_mixin (Args &&... args) | |
| Constructor with all parameters. More... | |
| timer_holder | allocate () |
| Allocate of new timer object. More... | |
| void | activate (timer_holder timer, Duration_1 pause, timer_action action) |
| Activate timer and schedule it for execution. More... | |
| void | activate (scoped_timer_object &timer, Duration_1 pause, timer_action action) |
| Activate a scoped timer and schedule it for execution. More... | |
| void | activate (Duration_1 pause, timer_action action) |
| Activate timer and schedule it for execution. More... | |
| void | activate (timer_holder timer, Duration_1 pause, Duration_2 period, timer_action action) |
| Activate timer and schedule it for execution. More... | |
| void | activate (scoped_timer_object &timer, Duration_1 pause, Duration_2 period, timer_action action) |
| Activate a scoped timer and schedule it for execution. More... | |
| void | activate (Duration_1 pause, Duration_2 period, timer_action action) |
| Activate timer and schedule it for execution. More... | |
| void | reschedule (timer_holder timer, Duration_1 pause, timer_action action) |
| Perform an attempt to reschedule a timer. More... | |
| void | reschedule (timer_holder timer, Duration_1 pause, Duration_2 period, timer_action action) |
| Perform an attempt to reschedule a timer. More... | |
| void | deactivate (timer_holder timer) |
| Deactivate timer and remove it from the list. More... | |
| void | deactivate (scoped_timer_object &timer) |
| Deactivate timer and remove it from the list. More... | |
| timer_quantities | get_timer_quantities () |
| Count of timers of various types. More... | |
| bool | empty () |
| Check for emptiness. More... | |
Private Types | |
| using | base_type = details::manager_impl_template< details::timer_wheel_engine< Thread_Safety, Timer_Action, Error_Logger, Actor_Exception_Handler > > |
| Shorthand for base type. More... | |
Additional Inherited Members | |
| Public Types inherited from timertt::details::basic_methods_impl_mixin< details::timer_wheel_engine< Thread_Safety, Timer_Action, Error_Logger, Actor_Exception_Handler >, consumer_type::manager > | |
| using | thread_safety = typename details::timer_wheel_engine< Thread_Safety, Timer_Action, Error_Logger, Actor_Exception_Handler > ::thread_safety |
| A typedef for thread safety type from Engine. More... | |
| using | timer_action = typename details::timer_wheel_engine< Thread_Safety, Timer_Action, Error_Logger, Actor_Exception_Handler > ::timer_action |
| An alias for timer_action type. More... | |
| using | scoped_timer_object = typename details::timer_wheel_engine< Thread_Safety, Timer_Action, Error_Logger, Actor_Exception_Handler > ::scoped_timer_object |
| An alias for scoped timer objects. More... | |
| using | timer_holder = timer_object_holder< typename details::timer_wheel_engine< Thread_Safety, Timer_Action, Error_Logger, Actor_Exception_Handler > ::thread_safety > |
| Shorthand for timer objects' smart pointer. More... | |
| Protected Attributes inherited from timertt::details::basic_methods_impl_mixin< details::timer_wheel_engine< Thread_Safety, Timer_Action, Error_Logger, Actor_Exception_Handler >, consumer_type::manager > | |
| details::timer_wheel_engine< Thread_Safety, Timer_Action, Error_Logger, Actor_Exception_Handler > | m_engine |
| Actual timer engine instance. More... | |
Detailed Description
template<typename Thread_Safety, typename Timer_Action = default_timer_action_type, typename Error_Logger = default_error_logger, typename Actor_Exception_Handler = default_actor_exception_handler>
class timertt::timer_wheel_manager_template< Thread_Safety, Timer_Action, Error_Logger, Actor_Exception_Handler >
A timer wheel manager template.
- Note
- Please see description of details::timer_wheel_engine for the details of the timer wheel mechanism.
- Template Parameters
-
Thread_Safety Thread-safety indicator. Must be timertt::thread_safety::unsafe or timertt::thread_safety::safe. Timer_Action type of functor to perform an user-defined action when timer expires. This must be Moveable and MoveConstructible type. Error_Logger type of logger for errors detected during timer handling. Interface for error logger is defined by default_error_logger class. Actor_Exception_Handler type of handler for dealing with exceptions thrown from timer actors. Interface for exception handler is defined by default_actor_exception_handler.
- Since
- v.1.1.0
Member Typedef Documentation
◆ base_type
template<typename Thread_Safety , typename Timer_Action = default_timer_action_type, typename Error_Logger = default_error_logger, typename Actor_Exception_Handler = default_actor_exception_handler>
|
private |
Shorthand for base type.
Constructor & Destructor Documentation
◆ timer_wheel_manager_template() [1/3]
template<typename Thread_Safety , typename Timer_Action = default_timer_action_type, typename Error_Logger = default_error_logger, typename Actor_Exception_Handler = default_actor_exception_handler>
|
inline |
Default constructor.
◆ timer_wheel_manager_template() [2/3]
template<typename Thread_Safety , typename Timer_Action = default_timer_action_type, typename Error_Logger = default_error_logger, typename Actor_Exception_Handler = default_actor_exception_handler>
|
inline |
Constructor with wheel size and granularity parameters.
- Parameters
-
wheel_size Size of the wheel. granularity Size of time step for the timer_wheel.
◆ timer_wheel_manager_template() [3/3]
template<typename Thread_Safety , typename Timer_Action = default_timer_action_type, typename Error_Logger = default_error_logger, typename Actor_Exception_Handler = default_actor_exception_handler>
|
inline |
Constructor with all parameters.
- Parameters
-
wheel_size Size of the wheel. granularity Size of time step for the timer_wheel. error_logger An error logger for timer thread. exception_handler An actor exception handler for timer thread.
The documentation for this class was generated from the following file:
