so_5::impl::local_mbox_template< Tracing_Base > Class Template Reference

A template with implementation of local mbox. More...

#include <local_mbox.hpp>

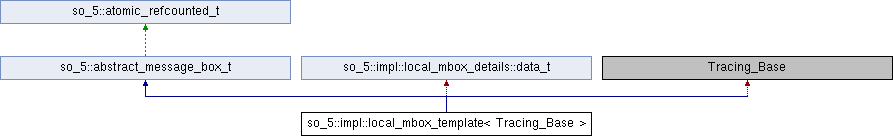

Inheritance diagram for so_5::impl::local_mbox_template< Tracing_Base >:

Public Member Functions
template<typename... Tracing_Args>
	local_mbox_template (mbox_id_t id, environment_t &env, Tracing_Args &&... args)
mbox_id_t	id () const override
	Unique ID of this mbox. More...
void	subscribe_event_handler (const std::type_index &type_wrapper, const so_5::message_limit::control_block_t *limit, agent_t &subscriber) override
	Add the message handler. More...
void	unsubscribe_event_handlers (const std::type_index &type_wrapper, agent_t &subscriber) override
	Remove all message handlers. More...
std::string	query_name () const override
	Get the mbox name. More...
mbox_type_t	type () const override
	Get the type of message box. More...
void	do_deliver_message (const std::type_index &msg_type, const message_ref_t &message, unsigned int overlimit_reaction_deep) override
	Deliver message for all subscribers with respect to message limits. More...
void	set_delivery_filter (const std::type_index &msg_type, const delivery_filter_t &filter, agent_t &subscriber) override
	Set a delivery filter for message type and subscriber. More...
void	drop_delivery_filter (const std::type_index &msg_type, agent_t &subscriber) noexcept override
	Removes delivery filter for message type and subscriber. More...
environment_t &	environment () const noexcept override
	SObjectizer Environment for which the mbox is created. More...
Public Member Functions inherited from so_5::abstract_message_box_t
	abstract_message_box_t ()=default
virtual	~abstract_message_box_t () noexcept=default
bool	operator== (const abstract_message_box_t &o) const noexcept
bool	operator< (const abstract_message_box_t &o) const noexcept

Private Member Functions
template<typename Info_Maker , typename Info_Changer >
void	insert_or_modify_subscriber (const std::type_index &type_wrapper, agent_t *subscriber, Info_Maker maker, Info_Changer changer)
template<typename Info_Changer >
void	modify_and_remove_subscriber_if_needed (const std::type_index &type_wrapper, agent_t *subscriber, Info_Changer changer)
void	do_deliver_message_impl (typename Tracing_Base::deliver_op_tracer const &tracer, const std::type_index &msg_type, const message_ref_t &message, unsigned int overlimit_reaction_deep)
void	do_deliver_message_to_subscriber (const local_mbox_details::subscriber_info_t &agent_info, typename Tracing_Base::deliver_op_tracer const &tracer, const std::type_index &msg_type, const message_ref_t &message, unsigned int overlimit_reaction_deep) const
void	ensure_immutable_message (const std::type_index &msg_type, const message_ref_t &what) const
	Ensures that message is an immutable message. More...
Private Member Functions inherited from so_5::impl::local_mbox_details::data_t
	data_t (mbox_id_t id, environment_t &env)

Additional Inherited Members
Protected Member Functions inherited from so_5::abstract_message_box_t
virtual void	do_deliver_message_from_timer (const std::type_index &msg_type, const message_ref_t &message)
	Special method for message delivery from a timer thread. More...
Protected Member Functions inherited from so_5::atomic_refcounted_t
	atomic_refcounted_t (const atomic_refcounted_t &)=delete
atomic_refcounted_t &	operator= (const atomic_refcounted_t &)=delete
	atomic_refcounted_t () noexcept
	Default constructor. More...
	~atomic_refcounted_t () noexcept=default
	Destructor. More...
void	inc_ref_count () noexcept
	Increments reference count. More...
unsigned long	dec_ref_count () noexcept
	Decrement reference count. More...
Static Protected Member Functions inherited from so_5::abstract_message_box_t
static void	delegate_deliver_message_from_timer (abstract_message_box_t &mbox, const std::type_index &msg_type, const message_ref_t &message)
	Helper for calling do_deliver_message_from_timer in derived classes. More...
Private Types inherited from so_5::impl::local_mbox_details::data_t
using	messages_table_t = std::map< std::type_index, subscriber_adaptive_container_t >
	Map from message type to subscribers. More...
Private Attributes inherited from so_5::impl::local_mbox_details::data_t
const mbox_id_t	m_id
	ID of this mbox. More...
environment_t &	m_env
	Environment for which the mbox is created. More...
default_rw_spinlock_t	m_lock
	Object lock. More...
messages_table_t	m_subscribers
	Map of subscribers to messages. More...

Detailed Description

template<typename Tracing_Base>
class so_5::impl::local_mbox_template< Tracing_Base >

A template with implementation of local mbox.

Since

v.5.5.9

Template Parameters

Tracing_Base

base class with implementation of message delivery tracing methods.

Constructor & Destructor Documentation

local_mbox_template()

template<typename Tracing_Base >

template<typename... Tracing_Args>

so_5::impl::local_mbox_template< Tracing_Base >::local_mbox_template ( mbox_id_t  id, environment_t &  env, Tracing_Args &&...  args  )

inline

Parameters

id	ID of this mbox.
env	Environment for which the mbox is created.
args	Optional parameters for Tracing_Base's constructor.

Member Function Documentation

do_deliver_message()

template<typename Tracing_Base >

void so_5::impl::local_mbox_template< Tracing_Base >::do_deliver_message ( const std::type_index &  msg_type, const message_ref_t &  message, unsigned int  overlimit_reaction_deep  )

inlineoverridevirtual

Deliver message for all subscribers with respect to message limits.

Since

v.5.5.4

Note

Since v.5.6.0 this method is used for deliverance of ordinary messages/signals and for deliverance of enveloped messages.

Implements so_5::abstract_message_box_t.

do_deliver_message_impl()

template<typename Tracing_Base >

void so_5::impl::local_mbox_template< Tracing_Base >::do_deliver_message_impl ( typename Tracing_Base::deliver_op_tracer const &  tracer, const std::type_index &  msg_type, const message_ref_t &  message, unsigned int  overlimit_reaction_deep  )

inlineprivate

do_deliver_message_to_subscriber()

template<typename Tracing_Base >

void so_5::impl::local_mbox_template< Tracing_Base >::do_deliver_message_to_subscriber ( const local_mbox_details::subscriber_info_t &  agent_info, typename Tracing_Base::deliver_op_tracer const &  tracer, const std::type_index &  msg_type, const message_ref_t &  message, unsigned int  overlimit_reaction_deep  ) const

inlineprivate

drop_delivery_filter()

template<typename Tracing_Base >

void so_5::impl::local_mbox_template< Tracing_Base >::drop_delivery_filter ( const std::type_index &  msg_type, agent_t &  subscriber  )

inlineoverridevirtualnoexcept

Removes delivery filter for message type and subscriber.

Since

v.5.5.5

Implements so_5::abstract_message_box_t.

ensure_immutable_message()

template<typename Tracing_Base >

void so_5::impl::local_mbox_template< Tracing_Base >::ensure_immutable_message ( const std::type_index &  msg_type, const message_ref_t &  what  ) const

inlineprivate

Ensures that message is an immutable message.

Checks mutability flag and throws an exception if message is a mutable one.

Since

v.5.5.19

environment()

template<typename Tracing_Base >

environment_t& so_5::impl::local_mbox_template< Tracing_Base >::environment ( ) const

inlineoverridevirtualnoexcept

SObjectizer Environment for which the mbox is created.

Since

v.5.6.0

Implements so_5::abstract_message_box_t.

id()

template<typename Tracing_Base >

mbox_id_t so_5::impl::local_mbox_template< Tracing_Base >::id ( ) const

inlineoverridevirtual

Unique ID of this mbox.

Since

v.5.4.0

Implements so_5::abstract_message_box_t.

insert_or_modify_subscriber()

template<typename Tracing_Base >

template<typename Info_Maker , typename Info_Changer >

void so_5::impl::local_mbox_template< Tracing_Base >::insert_or_modify_subscriber ( const std::type_index &  type_wrapper, agent_t *  subscriber, Info_Maker  maker, Info_Changer  changer  )

inlineprivate

modify_and_remove_subscriber_if_needed()

template<typename Tracing_Base >

template<typename Info_Changer >

void so_5::impl::local_mbox_template< Tracing_Base >::modify_and_remove_subscriber_if_needed ( const std::type_index &  type_wrapper, agent_t *  subscriber, Info_Changer  changer  )

inlineprivate

query_name()

template<typename Tracing_Base >

std::string so_5::impl::local_mbox_template< Tracing_Base >::query_name ( ) const

inlineoverridevirtual

Get the mbox name.

Implements so_5::abstract_message_box_t.

set_delivery_filter()

template<typename Tracing_Base >

void so_5::impl::local_mbox_template< Tracing_Base >::set_delivery_filter ( const std::type_index &  msg_type, const delivery_filter_t &  filter, agent_t &  subscriber  )

inlineoverridevirtual

Set a delivery filter for message type and subscriber.

Since

v.5.5.5

Note

If there already is a delivery filter for that (msg_type,subscriber) pair then old delivery filter will be replaced by new one.

Implements so_5::abstract_message_box_t.

subscribe_event_handler()

template<typename Tracing_Base >

void so_5::impl::local_mbox_template< Tracing_Base >::subscribe_event_handler ( const std::type_index &  type_index, const so_5::message_limit::control_block_t *  limit, agent_t &  subscriber  )

inlineoverridevirtual

Add the message handler.

Implements so_5::abstract_message_box_t.

type()

template<typename Tracing_Base >

mbox_type_t so_5::impl::local_mbox_template< Tracing_Base >::type ( ) const

inlineoverridevirtual

Get the type of message box.

Since

v.5.5.3

Note

This method is primarily intended for internal usage. It is useful sometimes in subscription-related operations because there is no need to do some actions for MPSC mboxes.

Implements so_5::abstract_message_box_t.

unsubscribe_event_handlers()

template<typename Tracing_Base >

void so_5::impl::local_mbox_template< Tracing_Base >::unsubscribe_event_handlers ( const std::type_index &  type_index, agent_t &  subscriber  )

inlineoverridevirtual

Remove all message handlers.

Implements so_5::abstract_message_box_t.

---

The documentation for this class was generated from the following file:

• local_mbox.hpp
