so_5::impl::limitful_mpsc_mbox_template< Tracing_Base > Class Template Reference

A multi-producer/single-consumer mbox with message limit control. More...

#include <mpsc_mbox.hpp>

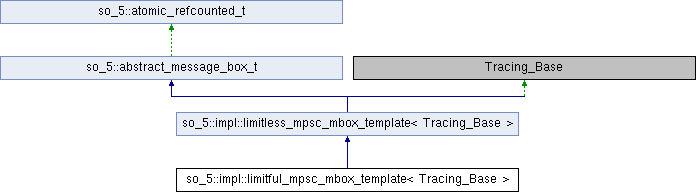

Inheritance diagram for so_5::impl::limitful_mpsc_mbox_template< Tracing_Base >:

Public Member Functions
template<typename... Tracing_Args>
	limitful_mpsc_mbox_template (mbox_id_t id, agent_t *single_consumer, const so_5::message_limit::impl::info_storage_t &limits_storage, Tracing_Args &&... tracing_args)
void	do_deliver_message (const std::type_index &msg_type, const message_ref_t &message, unsigned int overlimit_reaction_deep) override
	Deliver message for all subscribers with respect to message limits. More...
Public Member Functions inherited from so_5::impl::limitless_mpsc_mbox_template< Tracing_Base >
template<typename... Tracing_Args>
	limitless_mpsc_mbox_template (mbox_id_t id, agent_t *single_consumer, Tracing_Args &&... tracing_args)
mbox_id_t	id () const override
	Unique ID of this mbox. More...
void	subscribe_event_handler (const std::type_index &, const message_limit::control_block_t *, agent_t &subscriber) override
	Add the message handler. More...
void	unsubscribe_event_handlers (const std::type_index &, agent_t &subscriber) override
	Remove all message handlers. More...
std::string	query_name () const override
	Get the mbox name. More...
mbox_type_t	type () const override
	Get the type of message box. More...
void	set_delivery_filter (const std::type_index &, const delivery_filter_t &, agent_t &) override
void	drop_delivery_filter (const std::type_index &, agent_t &) noexcept override
	Removes delivery filter for message type and subscriber. More...
environment_t &	environment () const noexcept override
	SObjectizer Environment for which the mbox is created. More...
Public Member Functions inherited from so_5::abstract_message_box_t
	abstract_message_box_t ()=default
virtual	~abstract_message_box_t () noexcept=default
bool	operator== (const abstract_message_box_t &o) const noexcept
bool	operator< (const abstract_message_box_t &o) const noexcept

Private Types
using	base_type = limitless_mpsc_mbox_template< Tracing_Base >

Private Attributes
const so_5::message_limit::impl::info_storage_t &	m_limits

Additional Inherited Members
Protected Member Functions inherited from so_5::impl::limitless_mpsc_mbox_template< Tracing_Base >
template<typename L >
void	do_delivery (typename Tracing_Base::deliver_op_tracer const &tracer, L l)
	Helper method to do delivery actions under locked object. More...
Protected Member Functions inherited from so_5::abstract_message_box_t
virtual void	do_deliver_message_from_timer (const std::type_index &msg_type, const message_ref_t &message)
	Special method for message delivery from a timer thread. More...
Protected Member Functions inherited from so_5::atomic_refcounted_t
	atomic_refcounted_t (const atomic_refcounted_t &)=delete
atomic_refcounted_t &	operator= (const atomic_refcounted_t &)=delete
	atomic_refcounted_t () noexcept
	Default constructor. More...
	~atomic_refcounted_t () noexcept=default
	Destructor. More...
void	inc_ref_count () noexcept
	Increments reference count. More...
unsigned long	dec_ref_count () noexcept
	Decrement reference count. More...
Static Protected Member Functions inherited from so_5::abstract_message_box_t
static void	delegate_deliver_message_from_timer (abstract_message_box_t &mbox, const std::type_index &msg_type, const message_ref_t &message)
	Helper for calling do_deliver_message_from_timer in derived classes. More...
Protected Attributes inherited from so_5::impl::limitless_mpsc_mbox_template< Tracing_Base >
const mbox_id_t	m_id
	ID of this mbox. More...
agent_t *	m_single_consumer
	The only consumer of this mbox's messages. More...
default_rw_spinlock_t	m_lock
	Protection of object from modification. More...
std::size_t	m_subscriptions_count = 0
	Number of active subscriptions. More...

Detailed Description

template<typename Tracing_Base>
class so_5::impl::limitful_mpsc_mbox_template< Tracing_Base >

A multi-producer/single-consumer mbox with message limit control.

Since

v.5.5.4

Note

Renamed from limitful_mpsc_mbox_t to limitful_mpsc_mbox_template in v.5.5.9.

Attention

Stores a reference to message limits storage. Because of that this reference must remains correct till the end of the mbox's lifetime.

Member Typedef Documentation

base_type

template<typename Tracing_Base >

using so_5::impl::limitful_mpsc_mbox_template< Tracing_Base >::base_type = limitless_mpsc_mbox_template< Tracing_Base >

private

Constructor & Destructor Documentation

limitful_mpsc_mbox_template()

template<typename Tracing_Base >

template<typename... Tracing_Args>

so_5::impl::limitful_mpsc_mbox_template< Tracing_Base >::limitful_mpsc_mbox_template ( mbox_id_t  id, agent_t *  single_consumer, const so_5::message_limit::impl::info_storage_t &  limits_storage, Tracing_Args &&...  tracing_args  )

inline

Parameters

id	ID of that mbox.
single_consumer	The owner of that mbox.
limits_storage	This reference must remains correct till the end of the mbox's lifetime.
tracing_args	Optional arguments for Tracing_Base.

Member Function Documentation

do_deliver_message()

template<typename Tracing_Base >

void so_5::impl::limitful_mpsc_mbox_template< Tracing_Base >::do_deliver_message ( const std::type_index &  msg_type, const message_ref_t &  message, unsigned int  overlimit_reaction_deep  )

inlineoverridevirtual

Deliver message for all subscribers with respect to message limits.

Since

v.5.5.4

Note

Since v.5.6.0 this method is used for deliverance of ordinary messages/signals and for deliverance of enveloped messages.

Reimplemented from so_5::impl::limitless_mpsc_mbox_template< Tracing_Base >.

Member Data Documentation

m_limits

template<typename Tracing_Base >

const so_5::message_limit::impl::info_storage_t& so_5::impl::limitful_mpsc_mbox_template< Tracing_Base >::m_limits

private

---

The documentation for this class was generated from the following file:

• mpsc_mbox.hpp
