An interace of message chain. More...

#include <mchain.hpp>

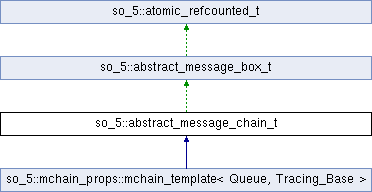

Inheritance diagram for so_5::abstract_message_chain_t:

Public Member Functions
virtual mchain_props::extraction_status_t	extract (mchain_props::demand_t &dest, mchain_props::duration_t empty_queue_timeout)=0

so_5::mbox_t	as_mbox ()
	Cast message chain to message box. More...

virtual bool	empty () const =0
	Is message chain empty? More...

virtual std::size_t	size () const =0
	Count of messages in the chain. More...

virtual void	close (mchain_props::close_mode_t mode)=0
	Close the chain. More...

virtual mbox_id_t	id () const=0
	Unique ID of this mbox. More...

virtual so_5::environment_t &	environment () const noexcept=0
	SObjectizer Environment for which the mbox is created. More...

Protected Member Functions
	abstract_message_chain_t ()=default

virtual	~abstract_message_chain_t () noexcept=default

virtual mchain_props::extraction_status_t	extract (mchain_props::demand_t &dest, mchain_props::select_case_t &select_case)
	An extraction attempt as a part of multi chain select. More...

virtual void	remove_from_select (mchain_props::select_case_t &select_case)
	Removement of mchain from multi chain select. More...

Protected Member Functions inherited from so_5::abstract_message_box_t
virtual void	do_deliver_message_from_timer (const std::type_index &msg_type, const message_ref_t &message)
	Special method for message delivery from a timer thread. More...

	abstract_message_box_t ()=default

virtual	~abstract_message_box_t () noexcept=default

virtual mbox_id_t	id () const =0
	Unique ID of this mbox. More...

virtual void	subscribe_event_handler (const std::type_index &type_index, const message_limit::control_block_t *limit, agent_t &subscriber)=0
	Add the message handler. More...

virtual void	unsubscribe_event_handlers (const std::type_index &type_index, agent_t &subscriber)=0
	Remove all message handlers. More...

virtual std::string	query_name () const =0
	Get the mbox name. More...

virtual mbox_type_t	type () const =0
	Get the type of message box. More...

virtual void	do_deliver_message (const std::type_index &msg_type, const message_ref_t &message, unsigned int overlimit_reaction_deep)=0
	Deliver message for all subscribers with respect to message limits. More...

virtual so_5::environment_t &	environment () const noexcept=0
	SObjectizer Environment for which the mbox is created. More...

bool	operator== (const abstract_message_box_t &o) const noexcept

bool	operator< (const abstract_message_box_t &o) const noexcept

virtual void	set_delivery_filter (const std::type_index &msg_type, const delivery_filter_t &filter, agent_t &subscriber)=0
	Set a delivery filter for message type and subscriber. More...

virtual void	drop_delivery_filter (const std::type_index &msg_type, agent_t &subscriber) noexcept=0
	Removes delivery filter for message type and subscriber. More...

Protected Member Functions inherited from so_5::atomic_refcounted_t
	atomic_refcounted_t (const atomic_refcounted_t &)=delete

atomic_refcounted_t &	operator= (const atomic_refcounted_t &)=delete

	atomic_refcounted_t () noexcept
	Default constructor. More...

	~atomic_refcounted_t () noexcept=default
	Destructor. More...

void	inc_ref_count () noexcept
	Increments reference count. More...

unsigned long	dec_ref_count () noexcept
	Decrement reference count. More...

Private Member Functions
	abstract_message_chain_t (const abstract_message_chain_t &)=delete

abstract_message_chain_t &	operator= (const abstract_message_chain_t &)=delete

Friends
class	intrusive_ptr_t< abstract_message_chain_t >

class	mchain_props::select_case_t

Additional Inherited Members
Static Protected Member Functions inherited from so_5::abstract_message_box_t
static void	delegate_deliver_message_from_timer (abstract_message_box_t &mbox, const std::type_index &msg_type, const message_ref_t &message)
	Helper for calling do_deliver_message_from_timer in derived classes. More...

Detailed Description

An interace of message chain.

Since: v.5.5.13

Constructor & Destructor Documentation

◆ abstract_message_chain_t() [1/2]

so_5::abstract_message_chain_t::abstract_message_chain_t ( const abstract_message_chain_t & )

privatedelete

◆ abstract_message_chain_t() [2/2]

so_5::abstract_message_chain_t::abstract_message_chain_t ( )

protecteddefault

◆ ~abstract_message_chain_t()

virtual so_5::abstract_message_chain_t::~abstract_message_chain_t ( )

protectedvirtualdefaultnoexcept

Member Function Documentation

◆ as_mbox()

mbox_t so_5::abstract_message_chain_t::as_mbox ( )

Cast message chain to message box.

◆ close()

virtual void so_5::abstract_message_chain_t::close ( mchain_props::close_mode_t mode )

pure virtual

Close the chain.

Parameters

mode	What to do with chain's content.

Implemented in so_5::mchain_props::mchain_template< Queue, Tracing_Base >.

◆ empty()

virtual bool so_5::abstract_message_chain_t::empty ( ) const

pure virtual

Is message chain empty?

Implemented in so_5::mchain_props::mchain_template< Queue, Tracing_Base >.

Examples:: so_5/producer_consumer_mchain/main.cpp.

◆ environment()

virtual so_5::environment_t& so_5::abstract_message_box_t::environment

noexcept

SObjectizer Environment for which the mbox is created.

Since: v.5.6.0

◆ extract() [1/2]

virtual mchain_props::extraction_status_t so_5::abstract_message_chain_t::extract	(	mchain_props::demand_t &	dest,
		mchain_props::duration_t	empty_queue_timeout
	)

pure virtual

Parameters

dest	Destination for extracted messages.
empty_queue_timeout	Max time to wait on empty queue.

Implemented in so_5::mchain_props::mchain_template< Queue, Tracing_Base >.

◆ extract() [2/2]

mchain_props::extraction_status_t so_5::abstract_message_chain_t::extract	(	mchain_props::demand_t &	dest,
		mchain_props::select_case_t &	select_case
	)

protectedvirtual

An extraction attempt as a part of multi chain select.

Note: In v.5.5.16 this method has an implementation. It is done to keep compatibility with previous version. This implementation throws an exception.; This method is intended to be used by select_case_t.

Since: v.5.5.16

Parameters

dest	Destination for extracted messages.
select_case	Select case to be stored for notification if mchain is empty.

Reimplemented in so_5::mchain_props::mchain_template< Queue, Tracing_Base >.

◆ id()

virtual mbox_id_t so_5::abstract_message_box_t::id

Unique ID of this mbox.

Since: v.5.4.0

◆ operator=()

abstract_message_chain_t& so_5::abstract_message_chain_t::operator= ( const abstract_message_chain_t & )

privatedelete

◆ remove_from_select()

void so_5::abstract_message_chain_t::remove_from_select ( mchain_props::select_case_t & select_case )

protectedvirtual

Removement of mchain from multi chain select.

Note: In v.5.5.16 this method has an implementation. It is done to keep compatibility with previous version. This implementation throws an exception.; This method is intended to be used by select_case_t.

Attention: This method will be declared as pure virtual and noexcept in v.5.6.0.

Since: v.5.5.16

Parameters

select_case Select case to be removed from notification queue.

Reimplemented in so_5::mchain_props::mchain_template< Queue, Tracing_Base >.

◆ size()

virtual std::size_t so_5::abstract_message_chain_t::size ( ) const

pure virtual

Count of messages in the chain.

Implemented in so_5::mchain_props::mchain_template< Queue, Tracing_Base >.

Friends And Related Function Documentation

◆ intrusive_ptr_t< abstract_message_chain_t >

friend class intrusive_ptr_t< abstract_message_chain_t >

friend

◆ mchain_props::select_case_t

friend class mchain_props::select_case_t

friend
