A base class for agent messages. More...

#include <message.hpp>

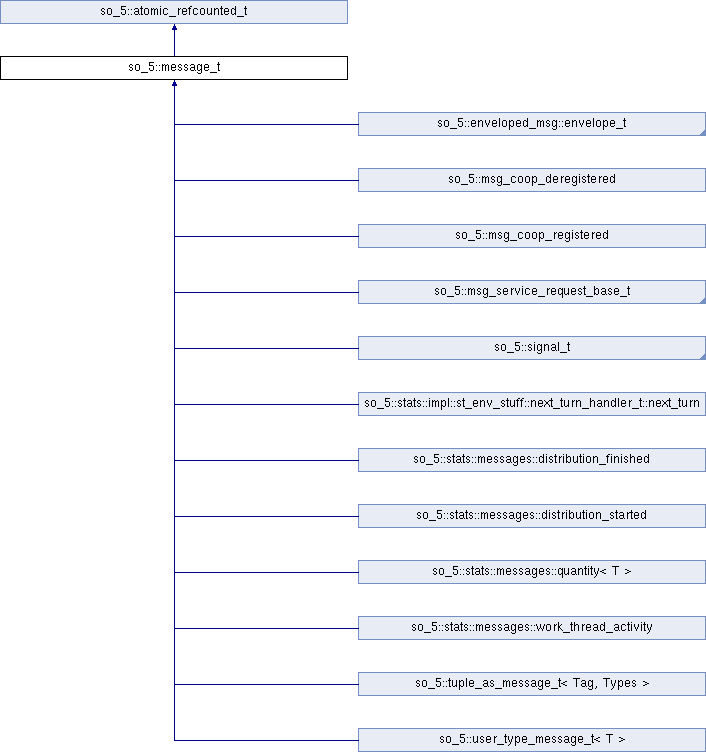

Inheritance diagram for so_5::message_t:

Public Types
using	kind_t = ::so_5::message_kind_t
	A short typedef for kind of message. More...

Public Member Functions
	message_t ()

	message_t (const message_t &other)

	message_t (message_t &&other)

message_t &	operator= (const message_t &other)

message_t &	operator= (message_t &&other)

virtual	~message_t () SO_5_NOEXCEPT=default

Public Member Functions inherited from so_5::atomic_refcounted_t
	atomic_refcounted_t (const atomic_refcounted_t &)=delete

atomic_refcounted_t &	operator= (const atomic_refcounted_t &)=delete

	atomic_refcounted_t () SO_5_NOEXCEPT
	Default constructor. More...

	~atomic_refcounted_t () SO_5_NOEXCEPT=default
	Destructor. More...

void	inc_ref_count () SO_5_NOEXCEPT
	Increments reference count. More...

unsigned long	dec_ref_count () SO_5_NOEXCEPT
	Decrement reference count. More...

Private Member Functions
virtual const void *	so5__payload_ptr () const
	Get the pointer to the message payload. More...

virtual message_mutability_t	so5_message_mutability () const
	Get message mutability flag. More...

virtual void	so5_change_mutability (message_mutability_t mutability)
	Change message mutabilty flag. More...

virtual kind_t	so5_message_kind () const SO_5_NOEXCEPT
	Detect the kind of the message. More...

Private Attributes
message_mutability_t	m_mutability
	Is message mutable or immutable? More...

Friends
class	impl::internal_message_iface_t

message_mutability_t	message_mutability (const intrusive_ptr_t< message_t > &what)
	Helper method for safe get of message mutability flag. More...

message_mutability_t	message_mutability (const message_t &what)
	Helper method for get message mutability flag. More...

void	change_message_mutability (intrusive_ptr_t< message_t > &what, message_mutability_t mutability)
	Helper method for safe change message mutability flag. More...

void	change_message_mutability (message_t &what, message_mutability_t mutability)
	Helper method for change message mutability flag. More...

message_kind_t	message_kind (const so_5::intrusive_ptr_t< message_t > &what)
	Helper method for quering kind of the message. More...

message_kind_t	message_kind (const message_t &what)
	Helper method for quering kind of the message. More...

Detailed Description

A base class for agent messages.

All messages for agents must be derived from this class.

Attention: This class should be used for all messages which have an actual message data. For signals (messages without any data) a signal_t class should be used as a base class.

Note: Class message_t is derived from atomic_refcounted_t. But atomic_refcounted_t is not Copyable or Movable class. It means that copy/move constructors and operators for message_t have no influence on the reference counter inside message_t.

Examples:: so_5/chameneos_prealloc_msgs/main.cpp, so_5/collector_many_performers/main.cpp, so_5/collector_performer_pair/main.cpp, so_5/make_pipeline/main.cpp, so_5/modify_resend_as_immutable/main.cpp, so_5/mutable_msg_agents/main.cpp, so_5/news_board/main.cpp, so_5/prio_work_stealing/main.cpp, so_5/simple_message_deadline/main.cpp, so_5/svc/parallel_sum/main.cpp, and so_5/work_generation/main.cpp.

Member Typedef Documentation

◆ kind_t

using so_5::message_t::kind_t = ::so_5::message_kind_t

A short typedef for kind of message.

Since: v.5.5.23

Constructor & Destructor Documentation

◆ message_t() [1/3]

so_5::message_t::message_t ( )

◆ message_t() [2/3]

so_5::message_t::message_t ( const message_t & other )

◆ message_t() [3/3]

so_5::message_t::message_t ( message_t && other )

◆ ~message_t()

virtual so_5::message_t::~message_t ( )

virtualdefault

Member Function Documentation

◆ operator=() [1/2]

message_t & so_5::message_t::operator= ( const message_t & other )

◆ operator=() [2/2]

message_t & so_5::message_t::operator= ( message_t && other )

◆ so5__payload_ptr()

const void * so_5::message_t::so5__payload_ptr ( ) const

privatevirtual

Get the pointer to the message payload.

Since: v.5.5.9

Note: This method is necessary for message delivery tracing. For ordinal messages it will return a pointer to the message itself. For service requests and user-defined messages it will return pointer to a payload object.

Reimplemented in so_5::msg_service_request_t< Result, Param >, and so_5::user_type_message_t< T >.

◆ so5_change_mutability()

virtual void so_5::message_t::so5_change_mutability ( message_mutability_t mutability )

inlineprivatevirtual

Change message mutabilty flag.

Attention: Changing mutability from message_mutability_t::immutable_message to message_mutability_t::mutable_message is a very bad idea. Please don't do this until you are know what you are doing.

Note: This method is intended to be used by SObjectizer and low-level SObjectizer extension. Because of that it is not guaranteed that this method is part of stable SObjectizer API. It can be changed or even removed in any future versions of SObjectizer.; This is a virual method because its behavious must be changed in msg_service_request_t.

Attention: This function can throw. For example a derived class can prohibit changing of message mutability.

Since: v.5.5.19

Parameters

mutability New mutability flag for

Reimplemented in so_5::msg_service_request_t< Result, Param >, and so_5::msg_service_request_base_t.

◆ so5_message_kind()

virtual kind_t so_5::message_t::so5_message_kind ( ) const

inlineprivatevirtual

Detect the kind of the message.

Note: This method is intended to be used by SObjectizer and low-level SObjectizer extension. Because of that it is not guaranteed that this method is part of stable SObjectizer API. It can be changed or even removed in any future versions of SObjectizer.

Since: v.5.5.23

Reimplemented in so_5::msg_service_request_base_t, so_5::user_type_message_t< T >, so_5::signal_t, and so_5::enveloped_msg::envelope_t.

◆ so5_message_mutability()

virtual message_mutability_t so_5::message_t::so5_message_mutability ( ) const

inlineprivatevirtual

Get message mutability flag.

Note: This method is intended to be used by SObjectizer and low-level SObjectizer extension. Because of that it is not guaranteed that this method is part of stable SObjectizer API. It can be changed or even removed in any future versions of SObjectizer.; This is a virual method because its behavious must be changed in msg_service_request_t.

Since: v.5.5.19

Reimplemented in so_5::msg_service_request_t< Result, Param >, and so_5::msg_service_request_base_t.

Friends And Related Function Documentation

◆ change_message_mutability [1/2]

void change_message_mutability	(	intrusive_ptr_t< message_t > &	what,
		message_mutability_t	mutability
	)

friend

Helper method for safe change message mutability flag.

Use this method instead of direct call to so5_change_mutability() because what will be nullptr for signals.

Note: This is a very dangerous operation. Don't do it by yourselt. See message_t::so5_change_mutability() for more details.

Attention: This function can throw. For example underlying message object can prohibit changing of message mutability.

Parameters

what	Message instance to be modified if it is not a signal.
mutability	New mutability flag for the message.

◆ change_message_mutability [2/2]

void change_message_mutability	(	message_t &	what,
		message_mutability_t	mutability
	)

friend

Helper method for change message mutability flag.

Note: This is a very dangerous operation. Don't do it by yourselt. See message_t::so5_change_mutability() for more details.

Attention: This function can throw. For example underlying message object can prohibit changing of message mutability.

Parameters

what	Message instance to be modified.
mutability	New mutability flag for the message.

◆ impl::internal_message_iface_t

friend class impl::internal_message_iface_t

friend

◆ message_kind [1/2]

message_kind_t message_kind ( const so_5::intrusive_ptr_t< message_t > & what )

friend

Helper method for quering kind of the message.

This helper function is necessary because it correctly handles case when message is a signal. In that case pointer to message instance will be null.

Note: This function is part of internal implementation of SObjectizer. Don't use it directly. It can be a subject of changes in some future versions.

Since: v.5.5.23

◆ message_kind [2/2]

message_kind_t message_kind ( const message_t & what )

friend

Helper method for quering kind of the message.

Note: This function is part of internal implementation of SObjectizer. Don't use it directly. It can be a subject of changes in some future versions.

Since: v.5.5.23

◆ message_mutability [1/2]

message_mutability_t message_mutability ( const intrusive_ptr_t< message_t > & what )

friend

Helper method for safe get of message mutability flag.

Use this method instead of direct call to so5_message_mutability() because what will be nullptr for signals.

◆ message_mutability [2/2]

message_mutability_t message_mutability ( const message_t & what )

friend

Helper method for get message mutability flag.

Member Data Documentation

◆ m_mutability

message_mutability_t so_5::message_t::m_mutability

private

Is message mutable or immutable?

By default the message is immutable.

Since: v.5.5.19

The documentation for this class was generated from the following files:
