A multi-producer/single-consumer mbox with message limit control. More...

#include <mpsc_mbox.hpp>

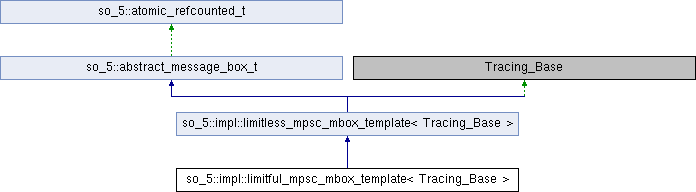

Inheritance diagram for so_5::impl::limitful_mpsc_mbox_template< Tracing_Base >:

Public Member Functions
template<typename... Tracing_Args>
	limitful_mpsc_mbox_template (mbox_id_t id, agent_t *single_consumer, const so_5::message_limit::impl::info_storage_t &limits_storage, Tracing_Args &&... tracing_args)

virtual void	do_deliver_message (const std::type_index &msg_type, const message_ref_t &message, unsigned int overlimit_reaction_deep) const override
	Deliver message for all subscribers with respect to message limits. More...

virtual void	do_deliver_service_request (const std::type_index &msg_type, const message_ref_t &message, unsigned int overlimit_reaction_deep) const override
	Deliver service request. More...

void	do_deliver_enveloped_msg (const std::type_index &msg_type, const message_ref_t &message, unsigned int overlimit_reaction_deep) override
	Deliver enveloped message. More...

Public Member Functions inherited from so_5::impl::limitless_mpsc_mbox_template< Tracing_Base >
template<typename... Tracing_Args>
	limitless_mpsc_mbox_template (mbox_id_t id, agent_t *single_consumer, Tracing_Args &&... tracing_args)

virtual mbox_id_t	id () const override
	Unique ID of this mbox. More...

virtual void	subscribe_event_handler (const std::type_index &, const message_limit::control_block_t , agent_t subscriber) override
	Add the message handler. More...

virtual void	unsubscribe_event_handlers (const std::type_index &, agent_t *subscriber) override
	Remove all message handlers. More...

virtual std::string	query_name () const override
	Get the mbox name. More...

virtual mbox_type_t	type () const override
	Get the type of message box. More...

virtual void	set_delivery_filter (const std::type_index &, const delivery_filter_t &, agent_t &) override

virtual void	drop_delivery_filter (const std::type_index &, agent_t &) SO_5_NOEXCEPT override
	Removes delivery filter for message type and subscriber. More...

Public Member Functions inherited from so_5::abstract_message_box_t
	abstract_message_box_t ()=default

virtual	~abstract_message_box_t () SO_5_NOEXCEPT=default

template<class Message >
void	deliver_message (std::type_index subscription_type, const intrusive_ptr_t< Message > &msg_ref) const
	Deliver message. More...

template<class Message >
void	deliver_message (const intrusive_ptr_t< Message > &msg_ref) const
	Deliver message. More...

template<class Message >
void	deliver_message (std::type_index subscription_type, std::unique_ptr< Message > msg_unique_ptr, message_mutability_t mutability) const
	Deliver message. More...

template<class Message >
void	deliver_message (std::unique_ptr< Message > msg_unique_ptr) const
	Deliver message. More...

template<class Message >
void	deliver_message (Message *msg_raw_ptr) const
	Deliver message. More...

template<class Message >
void	deliver_signal () const
	Deliver signal. More...

template<class Result >
service_invoke_proxy_t< Result >	get_one ()
	Create a special proxy for service request invocation. More...

service_invoke_proxy_t< void >	run_one ()
	Create a special proxy for service request invocation where return type is void. More...

void	deliver_message (const std::type_index &msg_type, const message_ref_t &message) const
	Deliver message for all subscribers. More...

void	deliver_service_request (const std::type_index &msg_type, const message_ref_t &message) const
	Deliver service request. More...

bool	operator== (const abstract_message_box_t &o) const SO_5_NOEXCEPT

bool	operator< (const abstract_message_box_t &o) const SO_5_NOEXCEPT

Private Types
using	base_type = limitless_mpsc_mbox_template< Tracing_Base >

Private Attributes
const so_5::message_limit::impl::info_storage_t &	m_limits

Additional Inherited Members
Protected Member Functions inherited from so_5::impl::limitless_mpsc_mbox_template< Tracing_Base >
template<typename L >
void	do_delivery (typename Tracing_Base::deliver_op_tracer const &tracer, L l) const
	Helper method to do delivery actions under locked object. More...

Protected Member Functions inherited from so_5::abstract_message_box_t
virtual void	do_deliver_message_from_timer (const std::type_index &msg_type, const message_ref_t &message)
	Special method for message delivery from a timer thread. More...

Protected Member Functions inherited from so_5::atomic_refcounted_t
	atomic_refcounted_t (const atomic_refcounted_t &)=delete

atomic_refcounted_t &	operator= (const atomic_refcounted_t &)=delete

	atomic_refcounted_t () SO_5_NOEXCEPT
	Default constructor. More...

	~atomic_refcounted_t () SO_5_NOEXCEPT=default
	Destructor. More...

void	inc_ref_count () SO_5_NOEXCEPT
	Increments reference count. More...

unsigned long	dec_ref_count () SO_5_NOEXCEPT
	Decrement reference count. More...

Static Protected Member Functions inherited from so_5::abstract_message_box_t
static void	delegate_deliver_message_from_timer (abstract_message_box_t &mbox, const std::type_index &msg_type, const message_ref_t &message)
	Helper for calling do_deliver_message_from_timer in derived classes. More...

Protected Attributes inherited from so_5::impl::limitless_mpsc_mbox_template< Tracing_Base >
const mbox_id_t	m_id
	ID of this mbox. More...

agent_t *	m_single_consumer
	The only consumer of this mbox's messages. More...

default_rw_spinlock_t	m_lock
	Protection of object from modification. More...

std::size_t	m_subscriptions_count = 0
	Number of active subscriptions. More...

Detailed Description

template<typename Tracing_Base>
class so_5::impl::limitful_mpsc_mbox_template< Tracing_Base >

A multi-producer/single-consumer mbox with message limit control.

Since: v.5.5.4

Note: Renamed from limitful_mpsc_mbox_t to limitful_mpsc_mbox_template in v.5.5.9.

Attention: Stores a reference to message limits storage. Because of that this reference must remains correct till the end of the mbox's lifetime.

Member Typedef Documentation

◆ base_type

template<typename Tracing_Base >

using so_5::impl::limitful_mpsc_mbox_template< Tracing_Base >::base_type = limitless_mpsc_mbox_template< Tracing_Base >

private

Constructor & Destructor Documentation

◆ limitful_mpsc_mbox_template()

template<typename Tracing_Base >

template<typename... Tracing_Args>

so_5::impl::limitful_mpsc_mbox_template< Tracing_Base >::limitful_mpsc_mbox_template	(	mbox_id_t	id,
		agent_t *	single_consumer,
		const so_5::message_limit::impl::info_storage_t &	limits_storage,
		Tracing_Args &&...	tracing_args
	)

inline

Parameters

id	ID of that mbox.
single_consumer	The owner of that mbox.
limits_storage	This reference must remains correct till the end of the mbox's lifetime.
tracing_args	Optional arguments for Tracing_Base.

Member Function Documentation

◆ do_deliver_enveloped_msg()

template<typename Tracing_Base >

void so_5::impl::limitful_mpsc_mbox_template< Tracing_Base >::do_deliver_enveloped_msg	(	const std::type_index &	msg_type,
		const message_ref_t &	message,
		unsigned int	overlimit_reaction_deep
	)

inlineoverridevirtual

Deliver enveloped message.

Note: To keep source-code compatibility with previous versions this method is not pure virtual. It has an implementation that throws an exception with rc_not_implemented error code. This method will be marked as pure virtual in v.5.6.0

Since: v.5.5.23

Reimplemented from so_5::impl::limitless_mpsc_mbox_template< Tracing_Base >.

◆ do_deliver_message()

template<typename Tracing_Base >

virtual void so_5::impl::limitful_mpsc_mbox_template< Tracing_Base >::do_deliver_message	(	const std::type_index &	msg_type,
		const message_ref_t &	message,
		unsigned int	overlimit_reaction_deep
	)		const

inlineoverridevirtual

Deliver message for all subscribers with respect to message limits.

Since: v.5.5.4

Note: It is obvious that do_deliver_message() must be non-const method. The constness is here now to keep compatibility in 5.5.* versions. The constness will be removed in v.5.6.0.

Reimplemented from so_5::impl::limitless_mpsc_mbox_template< Tracing_Base >.

◆ do_deliver_service_request()

template<typename Tracing_Base >

virtual void so_5::impl::limitful_mpsc_mbox_template< Tracing_Base >::do_deliver_service_request	(	const std::type_index &	msg_type,
		const message_ref_t &	message,
		unsigned int	overlimit_reaction_deep
	)		const

inlineoverridevirtual

Deliver service request.

Since: v.5.5.4

Note: It is obvious that do_deliver_message() must be non-const method. The constness is here now to keep compatibility in 5.5.* versions. The constness will be removed in v.5.6.0.

Reimplemented from so_5::impl::limitless_mpsc_mbox_template< Tracing_Base >.
