Context for handling http connections. More...

#include <connection.hpp>

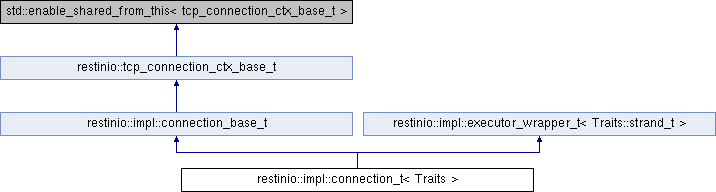

Inheritance diagram for restinio::impl::connection_t< Traits >:

Classes
struct	upgrade_internals_t
	Internals that are necessary for upgrade. More...

Public Types
using	timer_manager_t = typename Traits::timer_manager_t

using	timer_guard_t = typename timer_manager_t::timer_guard_t

using	request_handler_t = typename Traits::request_handler_t

using	logger_t = typename Traits::logger_t

using	strand_t = typename Traits::strand_t

using	stream_socket_t = typename Traits::stream_socket_t

Public Member Functions
	connection_t (connection_id_t conn_id, stream_socket_t &&socket, connection_settings_handle_t< Traits > settings, endpoint_t remote_endpoint)

	connection_t (const connection_t &)=delete

	connection_t (connection_t &&)=delete

connection_t &	operator= (const connection_t &)=delete

connection_t &	operator= (connection_t &&)=delete

	~connection_t () override

void	init ()

void	wait_for_http_message ()
	Start reading next htttp-message. More...

upgrade_internals_t	move_upgrade_internals ()
	Move socket out of connection. More...

Public Member Functions inherited from restinio::impl::connection_base_t
	connection_base_t (connection_id_t id)

Public Member Functions inherited from restinio::tcp_connection_ctx_base_t
	tcp_connection_ctx_base_t (connection_id_t id)

virtual	~tcp_connection_ctx_base_t ()=default

connection_id_t	connection_id () const noexcept
	Get connection id. More...

virtual void	check_timeout (std::shared_ptr< tcp_connection_ctx_base_t > &self)=0
	Check timeouts for all activities. More...

Public Member Functions inherited from restinio::impl::executor_wrapper_t< Traits::strand_t >
	executor_wrapper_t (Init_Executor &&init_executor)

virtual	~executor_wrapper_t ()=default

Traits::strand_t &	get_executor () noexcept
	An executor for callbacks on async operations. More...

Private Types
using	executor_wrapper_base_t = executor_wrapper_t< typename Traits::strand_t >

using	none_write_operation_t = write_group_output_ctx_t::none_write_operation_t

using	trivial_write_operation_t = write_group_output_ctx_t::trivial_write_operation_t

using	file_write_operation_t = write_group_output_ctx_t::file_write_operation_t

Private Member Functions
void	consume_message ()
	Start (continue) a chain of read-parse-read-... operations. More...

void	after_read (const asio_ns::error_code &ec, std::size_t length)
	Handle read operation result. More...

void	consume_data (const char *data, std::size_t length)
	Parse some data. More...

void	on_request_message_complete ()
	Handle a given request message. More...

void	handle_upgrade_request ()
	Calls handler for upgrade request. More...

virtual void	write_response_parts (request_id_t request_id, response_output_flags_t response_output_flags, write_group_t wg) override
	Write parts for specified request. More...

void	write_response_parts_impl (request_id_t request_id, response_output_flags_t response_output_flags, write_group_t wg)
	Write parts for specified request. More...

void	init_write_if_necessary ()

void	init_write ()
	Initiate write operation. More...

void	handle_current_write_ctx ()
	Start/continue/continue handling output data of current write group. More...

void	handle_trivial_write_operation (const trivial_write_operation_t &op)
	Run trivial buffers write operation. More...

void	handle_file_write_operation (file_write_operation_t &op)
	Run sendfile write operation. More...

void	finish_handling_current_write_ctx ()
	Do post write actions for current write group. More...

void	handle_nothing_to_write ()

void	after_write (const asio_ns::error_code &ec)
	Handle write response finished. More...


void	close ()
	Close connection functions. More...

template<typename Message_Builder >
void	trigger_error_and_close (Message_Builder msg_builder)
	Trigger an error. More...

Private Attributes
stream_socket_t	m_socket
	Connection. More...

connection_settings_handle_t< Traits >	m_settings
	Common paramaters of a connection. More...

const endpoint_t	m_remote_endpoint
	Remote endpoint for this connection. More...

connection_input_t	m_input
	Input routine. More...

write_group_output_ctx_t	m_write_output_ctx
	Write to socket operation context. More...

bool	m_init_read_after_this_write { false }

response_coordinator_t	m_response_coordinator
	Response coordinator. More...

request_handler_t &	m_request_handler
	Request handler. More...

logger_t &	m_logger
	Logger for operation. More...

using	timout_cb_t = void(connection_t::*)(void)
	Callback type for timedout operations. More...

timout_cb_t	m_current_timeout_cb { nullptr }
	Callback to all if timeout happened. More...

std::chrono::steady_clock::time_point	m_current_timeout_after
	Timeout point of a current guarded operation. More...

timer_guard_t	m_timer_guard
	Timer guard. More...

tcp_connection_ctx_weak_handle_t	m_prepared_weak_ctx
	A prepared weak handle for passing it to timer guard. More...

virtual void	check_timeout (tcp_connection_ctx_handle_t &self) override
	Schedules real timedout operations check on the executer of a connection. More...

void	check_timeout_impl ()
	Check timed out operation. More...

void	init_next_timeout_checking ()
	Schedule next timeout checking. More...

void	cancel_timeout_checking ()
	Stop timout guarding. More...

void	schedule_operation_timeout_callback (std::chrono::steady_clock::time_point timeout_after, timout_cb_t timout_cb)
	Helper function to work with timer guard. More...

void	schedule_operation_timeout_callback (std::chrono::steady_clock::duration timeout, timout_cb_t timout_cb)

void	handle_xxx_timeout (const char *operation_name)

void	handle_read_timeout ()

void	guard_read_operation ()
	Statr guard read operation if necessary. More...

void	handle_request_handling_timeout ()

void	guard_request_handling_operation ()
	Start guard request handling operation if necessary. More...

void	handle_write_response_timeout ()

void	guard_write_operation ()
	Start guard write operation if necessary. More...

void	handle_sendfile_timeout ()

void	guard_sendfile_operation (std::chrono::steady_clock::duration timelimit)

static connection_t &	cast_to_self (tcp_connection_ctx_base_t &base)
	Timer to controll operations. More...

Additional Inherited Members
Protected Member Functions inherited from restinio::tcp_connection_ctx_base_t
template<typename Derived >
std::shared_ptr< Derived >	shared_from_concrete ()
	Cast self to derived class. More...

Detailed Description

template<typename Traits>
class restinio::impl::connection_t< Traits >

Context for handling http connections.

Definition at line 218 of file connection.hpp.

Member Typedef Documentation

◆ executor_wrapper_base_t

template<typename Traits >

using restinio::impl::connection_t< Traits >::executor_wrapper_base_t = executor_wrapper_t< typename Traits::strand_t >

private

Definition at line 222 of file connection.hpp.

◆ file_write_operation_t

template<typename Traits >

using restinio::impl::connection_t< Traits >::file_write_operation_t = write_group_output_ctx_t::file_write_operation_t

private

Definition at line 922 of file connection.hpp.

◆ logger_t

template<typename Traits >

using restinio::impl::connection_t< Traits >::logger_t = typename Traits::logger_t

Definition at line 228 of file connection.hpp.

◆ none_write_operation_t

template<typename Traits >

using restinio::impl::connection_t< Traits >::none_write_operation_t = write_group_output_ctx_t::none_write_operation_t

private

Definition at line 920 of file connection.hpp.

◆ request_handler_t

template<typename Traits >

using restinio::impl::connection_t< Traits >::request_handler_t = typename Traits::request_handler_t

Definition at line 227 of file connection.hpp.

◆ strand_t

template<typename Traits >

using restinio::impl::connection_t< Traits >::strand_t = typename Traits::strand_t

Definition at line 229 of file connection.hpp.

◆ stream_socket_t

template<typename Traits >

using restinio::impl::connection_t< Traits >::stream_socket_t = typename Traits::stream_socket_t

Definition at line 230 of file connection.hpp.

◆ timer_guard_t

template<typename Traits >

using restinio::impl::connection_t< Traits >::timer_guard_t = typename timer_manager_t::timer_guard_t

Definition at line 226 of file connection.hpp.

◆ timer_manager_t

template<typename Traits >

using restinio::impl::connection_t< Traits >::timer_manager_t = typename Traits::timer_manager_t

Definition at line 225 of file connection.hpp.

◆ timout_cb_t

template<typename Traits >

using restinio::impl::connection_t< Traits >::timout_cb_t = void (connection_t::* )( void )

private

Callback type for timedout operations.

Definition at line 1349 of file connection.hpp.

◆ trivial_write_operation_t

template<typename Traits >

using restinio::impl::connection_t< Traits >::trivial_write_operation_t = write_group_output_ctx_t::trivial_write_operation_t

private

Definition at line 921 of file connection.hpp.

Constructor & Destructor Documentation

◆ connection_t() [1/3]

template<typename Traits >

restinio::impl::connection_t< Traits >::connection_t	(	connection_id_t	conn_id,
		stream_socket_t &&	socket,
		connection_settings_handle_t< Traits >	settings,
		endpoint_t	remote_endpoint
	)

inline

Parameters

conn_id	Connection id.
socket	Connection socket.
settings	Settings that are common for connections.
remote_endpoint	Remote endpoint for that connection.

Definition at line 232 of file connection.hpp.

◆ connection_t() [2/3]

template<typename Traits >

restinio::impl::connection_t< Traits >::connection_t ( const connection_t< Traits > & )

delete

◆ connection_t() [3/3]

template<typename Traits >

restinio::impl::connection_t< Traits >::connection_t ( connection_t< Traits > && )

delete

◆ ~connection_t()

template<typename Traits >

restinio::impl::connection_t< Traits >::~connection_t ( )

inlineoverride

Definition at line 267 of file connection.hpp.

Member Function Documentation

◆ after_read()

template<typename Traits >

void restinio::impl::connection_t< Traits >::after_read	(	const asio_ns::error_code &	ec,
		std::size_t	length
	)

inlineprivate

Handle read operation result.

Definition at line 410 of file connection.hpp.

◆ after_write()

template<typename Traits >

void restinio::impl::connection_t< Traits >::after_write ( const asio_ns::error_code & ec )

inlineprivate

Handle write response finished.

Definition at line 1203 of file connection.hpp.

◆ cancel_timeout_checking()

template<typename Traits >

void restinio::impl::connection_t< Traits >::cancel_timeout_checking ( )

inlineprivate

Stop timout guarding.

Definition at line 1385 of file connection.hpp.

◆ cast_to_self()

template<typename Traits >

static connection_t& restinio::impl::connection_t< Traits >::cast_to_self ( tcp_connection_ctx_base_t & base )

inlinestaticprivate

Timer to controll operations.

Check timeouts for all activities.

Definition at line 1331 of file connection.hpp.

◆ check_timeout()

template<typename Traits >

virtual void restinio::impl::connection_t< Traits >::check_timeout ( tcp_connection_ctx_handle_t & self )

inlineoverrideprivatevirtual

Schedules real timedout operations check on the executer of a connection.

Definition at line 1339 of file connection.hpp.

◆ check_timeout_impl()

template<typename Traits >

void restinio::impl::connection_t< Traits >::check_timeout_impl ( )

inlineprivate

Check timed out operation.

Definition at line 1363 of file connection.hpp.

◆ close()

template<typename Traits >

void restinio::impl::connection_t< Traits >::close ( )

inlineprivate

Close connection functions.

Standard close routine.

Definition at line 1244 of file connection.hpp.

◆ consume_data()

template<typename Traits >

void restinio::impl::connection_t< Traits >::consume_data	(	const char *	data,
		std::size_t	length
	)

inlineprivate

Parse some data.

Definition at line 462 of file connection.hpp.

◆ consume_message()

template<typename Traits >

void restinio::impl::connection_t< Traits >::consume_message ( )

inlineprivate

Start (continue) a chain of read-parse-read-... operations.

Definition at line 375 of file connection.hpp.

◆ finish_handling_current_write_ctx()

template<typename Traits >

void restinio::impl::connection_t< Traits >::finish_handling_current_write_ctx ( )

inlineprivate

Do post write actions for current write group.

Definition at line 1102 of file connection.hpp.

◆ guard_read_operation()

template<typename Traits >

void restinio::impl::connection_t< Traits >::guard_read_operation ( )

inlineprivate

Statr guard read operation if necessary.

Definition at line 1432 of file connection.hpp.

◆ guard_request_handling_operation()

template<typename Traits >

void restinio::impl::connection_t< Traits >::guard_request_handling_operation ( )

inlineprivate

Start guard request handling operation if necessary.

Definition at line 1450 of file connection.hpp.

◆ guard_sendfile_operation()

template<typename Traits >

void restinio::impl::connection_t< Traits >::guard_sendfile_operation ( std::chrono::steady_clock::duration timelimit )

inlineprivate

Definition at line 1482 of file connection.hpp.

◆ guard_write_operation()

template<typename Traits >

void restinio::impl::connection_t< Traits >::guard_write_operation ( )

inlineprivate

Start guard write operation if necessary.

Definition at line 1468 of file connection.hpp.

◆ handle_current_write_ctx()

template<typename Traits >

void restinio::impl::connection_t< Traits >::handle_current_write_ctx ( )

inlineprivate

Start/continue/continue handling output data of current write group.

This function is a starting point of a loop process of sending data from a given write group. It extracts the next bunch of trivial buffers or a sendfile-runner and starts an appropriate write operation. In data of a given write group finishes, finish_handling_current_write_ctx() is invoked thus breaking the loop.

Definition at line 934 of file connection.hpp.

◆ handle_file_write_operation()

template<typename Traits >

void restinio::impl::connection_t< Traits >::handle_file_write_operation ( file_write_operation_t & op )

inlineprivate

Run sendfile write operation.

Definition at line 1029 of file connection.hpp.

◆ handle_nothing_to_write()

template<typename Traits >

void restinio::impl::connection_t< Traits >::handle_nothing_to_write ( )

inlineprivate

Definition at line 1161 of file connection.hpp.

◆ handle_read_timeout()

template<typename Traits >

void restinio::impl::connection_t< Traits >::handle_read_timeout ( )

inlineprivate

Definition at line 1425 of file connection.hpp.

◆ handle_request_handling_timeout()

template<typename Traits >

void restinio::impl::connection_t< Traits >::handle_request_handling_timeout ( )

inlineprivate

Definition at line 1443 of file connection.hpp.

◆ handle_sendfile_timeout()

template<typename Traits >

void restinio::impl::connection_t< Traits >::handle_sendfile_timeout ( )

inlineprivate

Definition at line 1476 of file connection.hpp.

◆ handle_trivial_write_operation()

template<typename Traits >

void restinio::impl::connection_t< Traits >::handle_trivial_write_operation ( const trivial_write_operation_t & op )

inlineprivate

Run trivial buffers write operation.

Definition at line 967 of file connection.hpp.

◆ handle_upgrade_request()

template<typename Traits >

void restinio::impl::connection_t< Traits >::handle_upgrade_request ( )

inlineprivate

Calls handler for upgrade request.

Request data must be in input context (m_input).

Definition at line 630 of file connection.hpp.

◆ handle_write_response_timeout()

template<typename Traits >

void restinio::impl::connection_t< Traits >::handle_write_response_timeout ( )

inlineprivate

Definition at line 1461 of file connection.hpp.

◆ handle_xxx_timeout()

template<typename Traits >

void restinio::impl::connection_t< Traits >::handle_xxx_timeout ( const char * operation_name )

inlineprivate

Definition at line 1412 of file connection.hpp.

◆ init()

template<typename Traits >

void restinio::impl::connection_t< Traits >::init ( )

inline

Definition at line 282 of file connection.hpp.

◆ init_next_timeout_checking()

template<typename Traits >

void restinio::impl::connection_t< Traits >::init_next_timeout_checking ( )

inlineprivate

Schedule next timeout checking.

Definition at line 1378 of file connection.hpp.

◆ init_write()

template<typename Traits >

void restinio::impl::connection_t< Traits >::init_write ( )

inlineprivate

Initiate write operation.

Definition at line 851 of file connection.hpp.

◆ init_write_if_necessary()

template<typename Traits >

void restinio::impl::connection_t< Traits >::init_write_if_necessary ( )

inlineprivate

Definition at line 839 of file connection.hpp.

◆ move_upgrade_internals()

template<typename Traits >

upgrade_internals_t restinio::impl::connection_t< Traits >::move_upgrade_internals ( )

inline

Move socket out of connection.

Definition at line 365 of file connection.hpp.

◆ on_request_message_complete()

template<typename Traits >

void restinio::impl::connection_t< Traits >::on_request_message_complete ( )

inlineprivate

Handle a given request message.

Definition at line 509 of file connection.hpp.

◆ operator=() [1/2]

template<typename Traits >

connection_t& restinio::impl::connection_t< Traits >::operator= ( const connection_t< Traits > & )

delete

◆ operator=() [2/2]

template<typename Traits >

connection_t& restinio::impl::connection_t< Traits >::operator= ( connection_t< Traits > && )

delete

◆ schedule_operation_timeout_callback() [1/2]

template<typename Traits >

void restinio::impl::connection_t< Traits >::schedule_operation_timeout_callback	(	std::chrono::steady_clock::time_point	timeout_after,
		timout_cb_t	timout_cb
	)

inlineprivate

Helper function to work with timer guard.

Definition at line 1393 of file connection.hpp.

◆ schedule_operation_timeout_callback() [2/2]

template<typename Traits >

void restinio::impl::connection_t< Traits >::schedule_operation_timeout_callback	(	std::chrono::steady_clock::duration	timeout,
		timout_cb_t	timout_cb
	)

inlineprivate

Definition at line 1402 of file connection.hpp.

◆ trigger_error_and_close()

template<typename Traits >

template<typename Message_Builder >

void restinio::impl::connection_t< Traits >::trigger_error_and_close ( Message_Builder msg_builder )

inlineprivate

Trigger an error.

Closes the connection and write to log an error message.

Definition at line 1297 of file connection.hpp.

◆ wait_for_http_message()

template<typename Traits >

void restinio::impl::connection_t< Traits >::wait_for_http_message ( )

inline

Start reading next htttp-message.

Definition at line 315 of file connection.hpp.

◆ write_response_parts()

template<typename Traits >

virtual void restinio::impl::connection_t< Traits >::write_response_parts	(	request_id_t	request_id,
		response_output_flags_t	response_output_flags,
		write_group_t	wg
	)

inlineoverrideprivatevirtual

Write parts for specified request.

Run write message on io_context loop if possible.

Parameters

request_id	Request id.
response_output_flags	Resp output flag.
wg	Part of the response data.

Implements restinio::impl::connection_base_t.

Definition at line 710 of file connection.hpp.

◆ write_response_parts_impl()

template<typename Traits >

void restinio::impl::connection_t< Traits >::write_response_parts_impl	(	request_id_t	request_id,
		response_output_flags_t	response_output_flags,
		write_group_t	wg
	)

inlineprivate

Write parts for specified request.

Parameters

request_id	Request id.
response_output_flags	Resp output flag.
wg	Part of the response data.

Definition at line 747 of file connection.hpp.

Member Data Documentation

◆ m_current_timeout_after

template<typename Traits >

std::chrono::steady_clock::time_point restinio::impl::connection_t< Traits >::m_current_timeout_after

private

Timeout point of a current guarded operation.

Definition at line 1355 of file connection.hpp.

◆ m_current_timeout_cb

template<typename Traits >

timout_cb_t restinio::impl::connection_t< Traits >::m_current_timeout_cb { nullptr }

private

Callback to all if timeout happened.

Definition at line 1352 of file connection.hpp.

◆ m_init_read_after_this_write

template<typename Traits >

bool restinio::impl::connection_t< Traits >::m_init_read_after_this_write { false }

private

Definition at line 1321 of file connection.hpp.

◆ m_input

template<typename Traits >

connection_input_t restinio::impl::connection_t< Traits >::m_input

private

Input routine.

Definition at line 1315 of file connection.hpp.

◆ m_logger

template<typename Traits >

logger_t& restinio::impl::connection_t< Traits >::m_logger

private

Logger for operation.

Definition at line 1497 of file connection.hpp.

◆ m_prepared_weak_ctx

template<typename Traits >

tcp_connection_ctx_weak_handle_t restinio::impl::connection_t< Traits >::m_prepared_weak_ctx

private

A prepared weak handle for passing it to timer guard.

Definition at line 1359 of file connection.hpp.

◆ m_remote_endpoint

template<typename Traits >

const endpoint_t restinio::impl::connection_t< Traits >::m_remote_endpoint

private

Remote endpoint for this connection.

Definition at line 1312 of file connection.hpp.

◆ m_request_handler

template<typename Traits >

request_handler_t& restinio::impl::connection_t< Traits >::m_request_handler

private

Request handler.

Definition at line 1494 of file connection.hpp.

◆ m_response_coordinator

template<typename Traits >

response_coordinator_t restinio::impl::connection_t< Traits >::m_response_coordinator

private

Response coordinator.

Definition at line 1324 of file connection.hpp.

◆ m_settings

template<typename Traits >

connection_settings_handle_t< Traits > restinio::impl::connection_t< Traits >::m_settings

private

Common paramaters of a connection.

Definition at line 1309 of file connection.hpp.

◆ m_socket

template<typename Traits >

stream_socket_t restinio::impl::connection_t< Traits >::m_socket

private

Connection.

Definition at line 1306 of file connection.hpp.

◆ m_timer_guard

template<typename Traits >

timer_guard_t restinio::impl::connection_t< Traits >::m_timer_guard

private

Timer guard.

Definition at line 1357 of file connection.hpp.

◆ m_write_output_ctx

template<typename Traits >

write_group_output_ctx_t restinio::impl::connection_t< Traits >::m_write_output_ctx

private

Write to socket operation context.

Definition at line 1318 of file connection.hpp.

The documentation for this class was generated from the following file:

restinio/impl/connection.hpp

Classes

Public Types

Public Member Functions

Private Types

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

template<typename Traits> class restinio::impl::connection_t< Traits >

Member Typedef Documentation

◆ executor_wrapper_base_t

◆ file_write_operation_t

◆ logger_t

◆ none_write_operation_t

◆ request_handler_t

◆ strand_t

◆ stream_socket_t

◆ timer_guard_t

◆ timer_manager_t

◆ timout_cb_t

◆ trivial_write_operation_t

Constructor & Destructor Documentation

◆ connection_t() [1/3]

◆ connection_t() [2/3]

◆ connection_t() [3/3]

◆ ~connection_t()

Member Function Documentation

◆ after_read()

◆ after_write()

◆ cancel_timeout_checking()

◆ cast_to_self()

◆ check_timeout()

◆ check_timeout_impl()

◆ close()

◆ consume_data()

◆ consume_message()

◆ finish_handling_current_write_ctx()

◆ guard_read_operation()

◆ guard_request_handling_operation()

◆ guard_sendfile_operation()

◆ guard_write_operation()

◆ handle_current_write_ctx()

◆ handle_file_write_operation()

◆ handle_nothing_to_write()

◆ handle_read_timeout()

◆ handle_request_handling_timeout()

◆ handle_sendfile_timeout()

◆ handle_trivial_write_operation()

◆ handle_upgrade_request()

◆ handle_write_response_timeout()

◆ handle_xxx_timeout()

◆ init()

◆ init_next_timeout_checking()

◆ init_write()

◆ init_write_if_necessary()

◆ move_upgrade_internals()

◆ on_request_message_complete()

◆ operator=() [1/2]

◆ operator=() [2/2]

◆ schedule_operation_timeout_callback() [1/2]

◆ schedule_operation_timeout_callback() [2/2]

◆ trigger_error_and_close()

◆ wait_for_http_message()

◆ write_response_parts()

◆ write_response_parts_impl()

Member Data Documentation

◆ m_current_timeout_after

◆ m_current_timeout_cb

◆ m_init_read_after_this_write

◆ m_input

◆ m_logger

◆ m_prepared_weak_ctx

◆ m_remote_endpoint

◆ m_request_handler

◆ m_response_coordinator

◆ m_settings

◆ m_socket

◆ m_timer_guard

◆ m_write_output_ctx

template<typename Traits>
class restinio::impl::connection_t< Traits >
